ALX5

Low Profile Linear

The ALX5 low profile linear LED fixture is more than just a lighting fixture – it’s a statement piece that combines functionality and style. Experience exceptional lighting performance and create an atmosphere that leaves a lasting impression with the ALX5.

Cross Section

Untitled design
ALX5 - SQL
Untitled design (1)
ALX5 - RLR
Untitled design (2)
AXL5 - FRL

Features

  • Slim Clean Architectural Styling; No Visible Hardware
  • Flat Rounded Lens / Round Lens / Square Lens
  • Surface or Pendant Mount
  • 1 3/8″ Wide X 1 5/8″ High, Extruded Aluminum Housing
  • Satin Anodized or White Paint Standard
  • Square Frosted Acrylic Lens, Smooth Uniformity, No Pixelation
  • Three LED Lumen Output Choices and Up to 1100 Lumens / Foot
  • Four LED Colors Choices
  • Remote Drivers, 0-10V Dimming Standard

Applications

  • Corridors
  • Restrooms
  • Closets
  • Stack Lighting
  • Cove Lighting
  • Office
  • Retail
  • Residential
  • Commercial

Download Resources

CUTSHEET (FRL)
CUTSHEET (RLR)
CUTSHEET (SQL)
INSTALLATION GUIDE
IES FILES

Housing Finishes

W-White
W
White
S-Satin-1
S
Satin
A-Anti-Microbial
A
Anti Microbial
RGBW-COLOR-TUNING
C
Custom

NOTE:
The actual color of the product may vary from what is seen on electronic devices.
We cannot guarantee that the color you see on your screen accurately reflects the true color of the product.

LED Boards

27K-2700K
27K
2700K
30K-3000K
30K
3000K
35K-3500K
35K
3500K
40K-4000K
40K
4000K

LED DRIVERS

DESCRIPTION

Remote LED Drivers with Enclosure (Included)
Remote, Universal Voltage, 0-10V Dimming Standard, 1% or 10% Dimming

Mounting Options

Surface Mounting Options

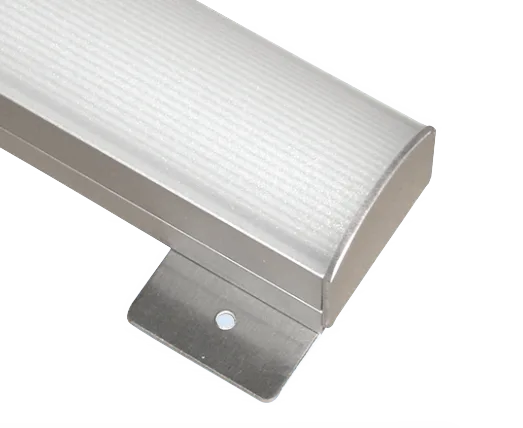

ALX5 Options3
TM
Tab Mount

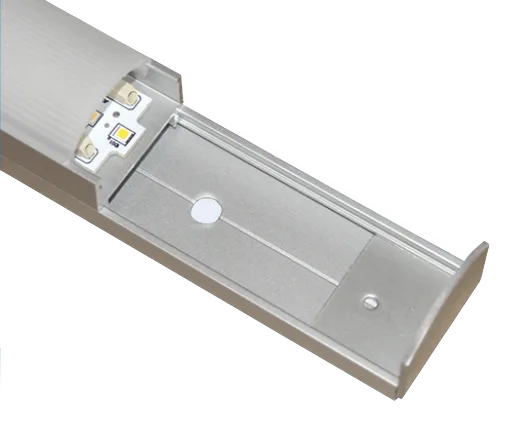

ALX5 Options4
IM
Inside Screw Mount

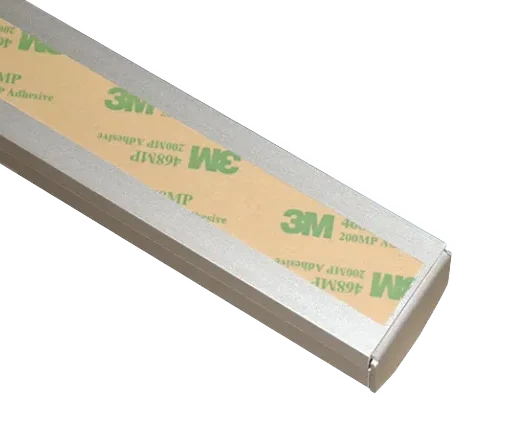

ALX5 Options5
DFT
Tape Mount
Cove 5 Mounting options6
JBP
J Box Plate

Surface Mounting Feed Options

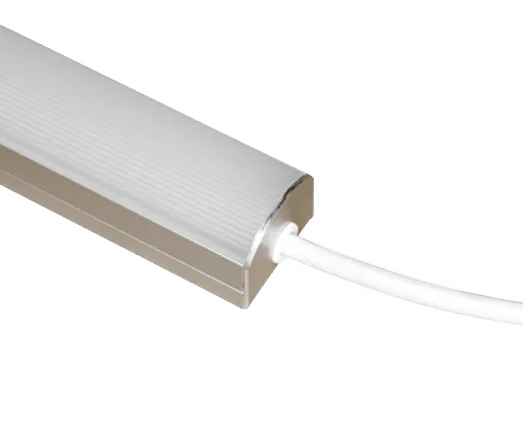

ALX5 Options7
EL
End Lead Wire

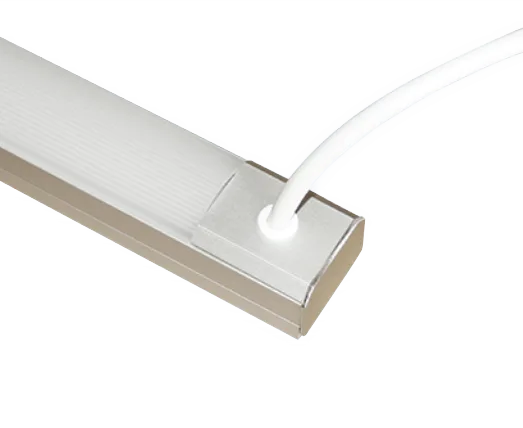

ALX5 Options8
TEL
Top End Lead Wire
ALX5 Options9
BEL
Back End Lead Wire

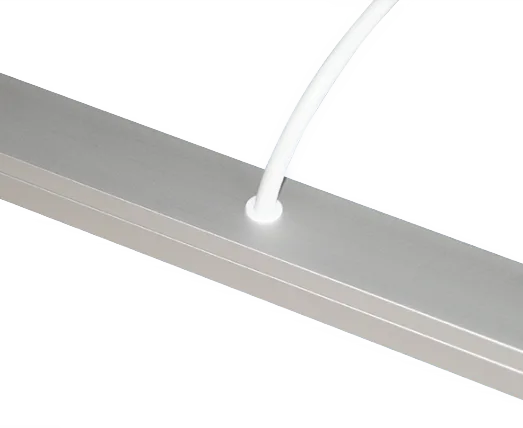

ALX5 Options1
BCL
Back Center Lead Wire

Cable Suspended Mounting Options

36-Suspension-kit
SK36
36" Suspension Kit
48-Suspension-Kit
SK48
48" Suspension Kit
72-Suspension-kit
SK72
72" Suspension Kit
