TRIANGULO 2

2" Profile Triangle Lighting

This luminaire features advanced technology that provides exceptional illumination, giving you the choice of down light or up light to perfectly match your space. Its sleek and durable extruded aluminum housing, available in both 2″ and 1 3/8″ widths, ensures longevity and style. The Triangulo’s design philosophy is centered around minimalism – it seamlessly integrates into your environment with no visible hardware, offering both surface and pendant mounting options.

Cross Section

Untitled design (5)
TR2 - SQL
SQUARE LENS
Untitled design (6)

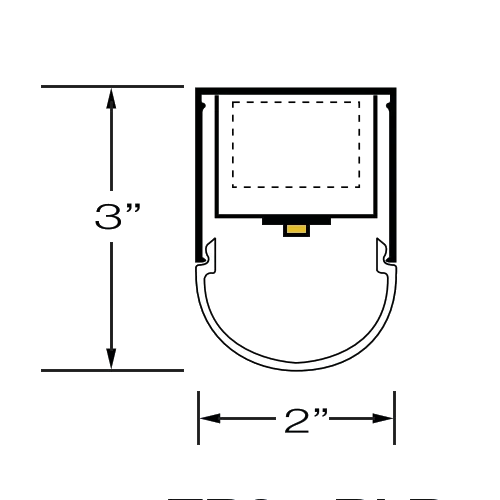

TR2 - RLR
ROUND LENS
Untitled design (10)

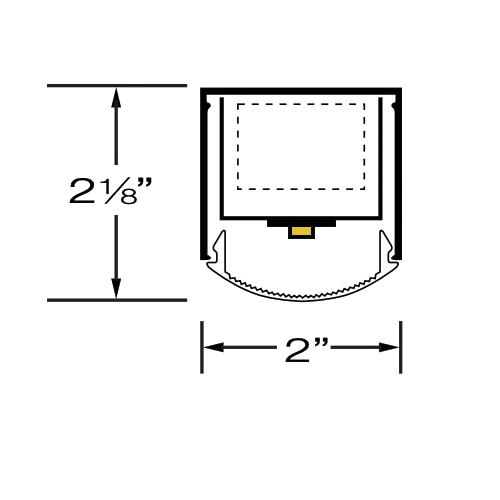

TR2 - FRL
FLAT ROUND LENS

Features

  • Clean Architectural; Triangles with No Visible Hardware
  • 1 3/8″ or 2″ Wide, Extruded Aluminum Housing
  • Powder Coat Satin or White Finish Standard; Custom Colors Available
  • Three Lens Styles: Square, Round and Flat
  • Frosted Acrylic Lens, Smooth Uniformity, No Pixelation
  • Three LED Lumen Output Choices; Up to 1100 Lumens / Foot
  • Four LED Color Choices
  • Integral or Remote Drivers, 0-10V Dimming Standard
  • Pendant or Surface Mount

Applications

  • Office
  • Retail
  • Residential
  • Commercial
  • General Illumination
  • Conference Rooms
  • Atriums

Download Resources

CUTSHEET
FLYER

Housing Finishes

W-White
W
White
S-Satin-1
S
Satin
A-Anti-Microbial
A
Anti Microbial
RGBW-COLOR-TUNING
C
Custom

NOTE:
The actual color of the product may vary from what is seen on electronic devices.
We cannot guarantee that the color you see on your screen accurately reflects the true color of the product.

LED Boards

27K-2700K
27K
2700K
30K-3000K
30K
3000K
35K-3500K
35K
3500K
40K-4000K
40K
4000K

LED DRIVERS

DESCRIPTION

Integral
Universal Voltage, 0-10V Dimming Standard, Custom Programmable
Remote (Included)
Universal Voltage, 0-10V Dimming Standard, Custom Programmable

Configurations

SQL - Square Lens
RLR - Round Lens
FRL - Flat Round Lens

Mounting Options

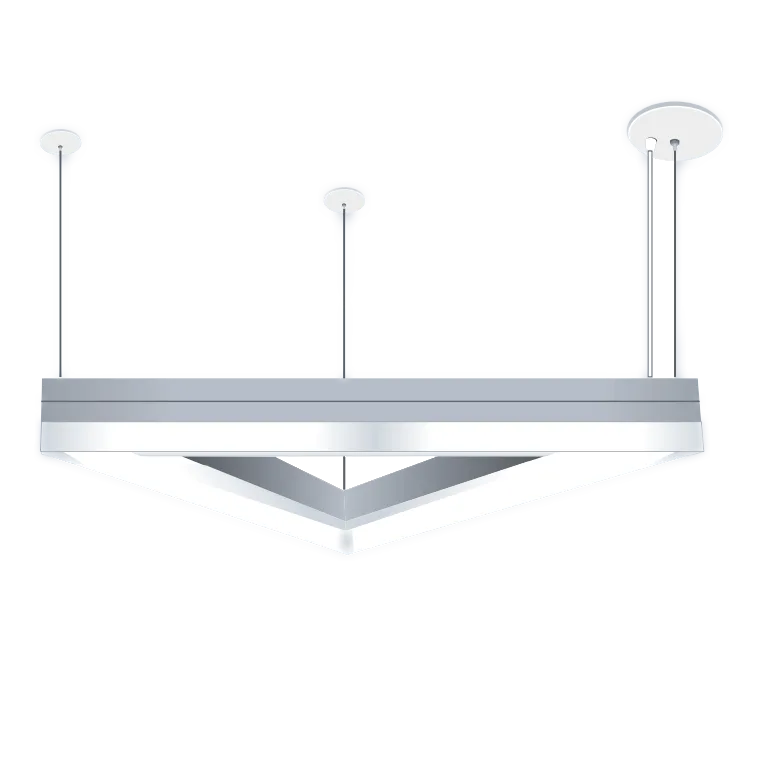

SC
Straight Cable

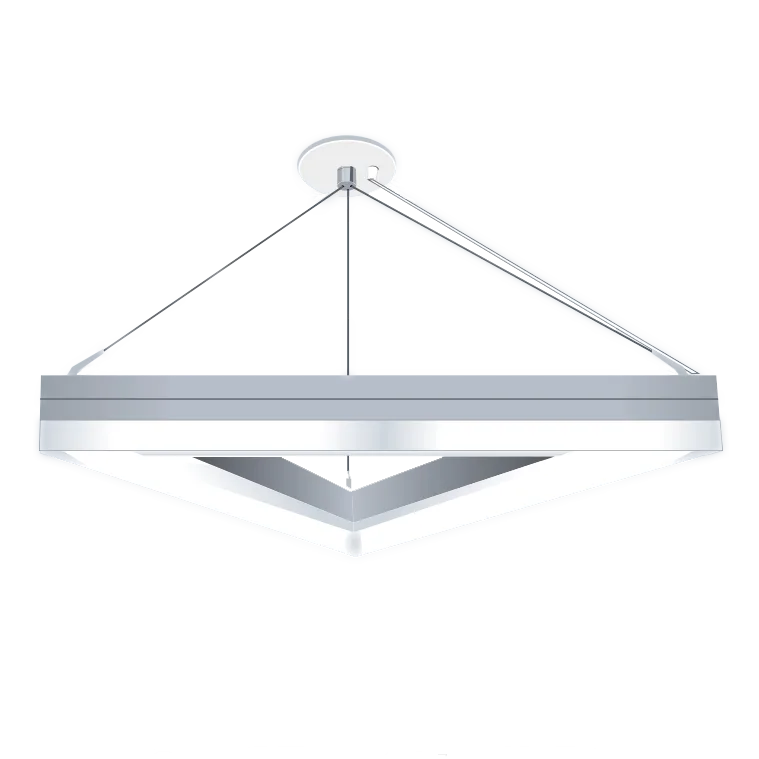

PC
Pyramid Cable

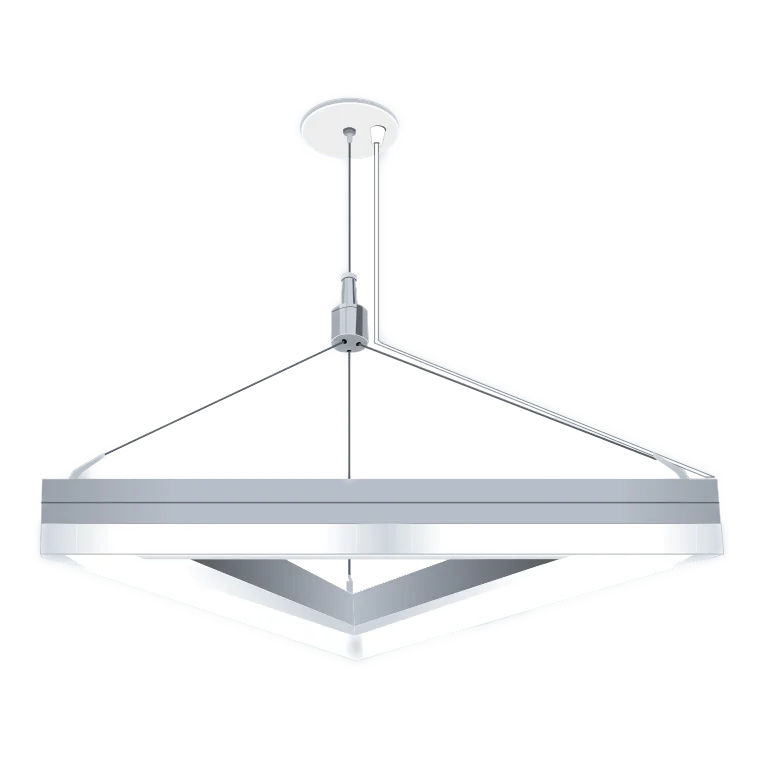

CC
Center Cable

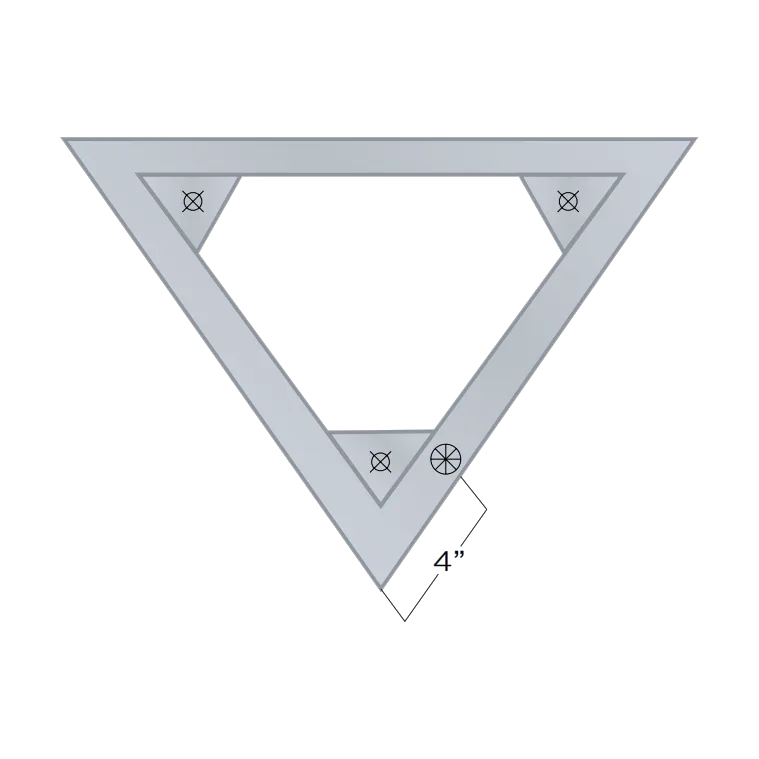

SM
Surface Mount
