QUADRO 2

2" Profile Square Lighting

The QUADRO 2 offers versatile lighting options tailored to your specific needs. Choose from the sophisticated Down light, casting a focused illumination that elegantly highlights spaces; the Up light, which adds an inviting ambiance by directing light towards ceilings; the Inside light variation, crafting an intimate atmosphere; or the outside light variation, extending the luminaire’s charm to exterior spaces.

Cross Section

SQL

Square Lens

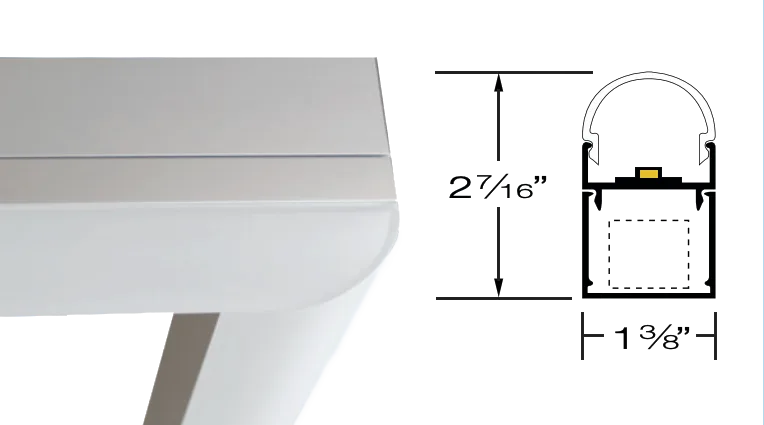

RLR

Round Lens

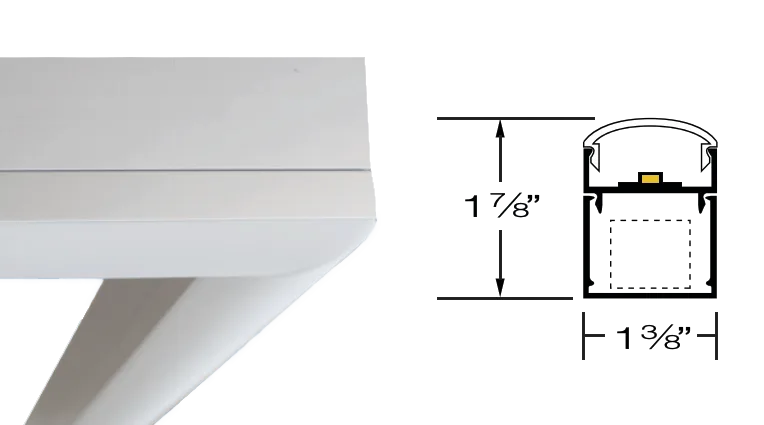

Flat Round Lens

Features

Clean Architectural Styling; Squares with No Visible Hardware
Pendant or Surface Mount
1 3/8″ Wide, Extruded Aluminum Housing
Satin Anodized or White Paint Standard; Custom Colors Available
Three Lens Styles: Square, Round and Flat Semi-Round
Frosted Acrylic Lens, Smooth Uniformity, No Pixelation
Four Light Direction Options: Up, Down, Inside and Outside
Three LED Lumen Output Choices and Up to 1100 Lumens / Foot
Four LED Color Choices
Integral or Remote Drivers, 0-10V Dimming Standard

Applications

Office
Retail
Residential
Commercial
General Illumination
Conference Rooms

Download Resources

CUTSHEET

FLYER

Housing Finishes

White

Satin

Anti Microbial

Custom

NOTE:
The actual color of the product may vary from what is seen on electronic devices.
We cannot guarantee that the color you see on your screen accurately reflects the true color of the product.

LED Boards

27K

2700K

30K

3000K

35K

3500K

40K

4000K

LED DRIVERS

DESCRIPTION

Integral

Universal Voltage, 0-10V Dimming Standard, Custom Programmable

Remote (Included)

Universal Voltage, 0-10V Dimming Standard, Custom Programmable

Configurations

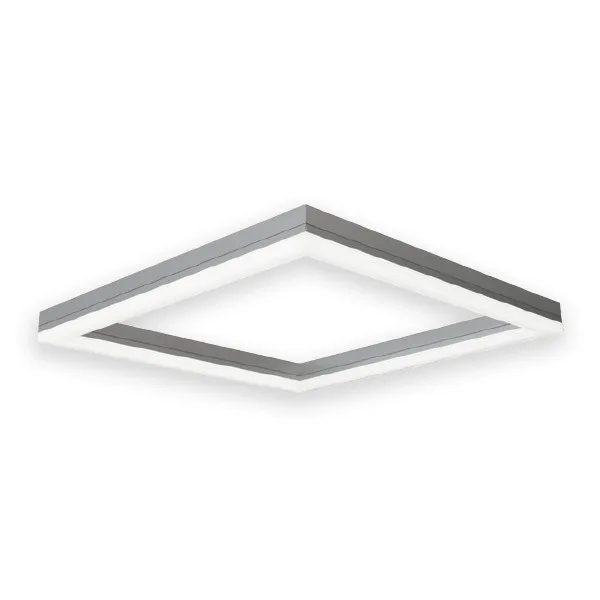

DL - Down Light

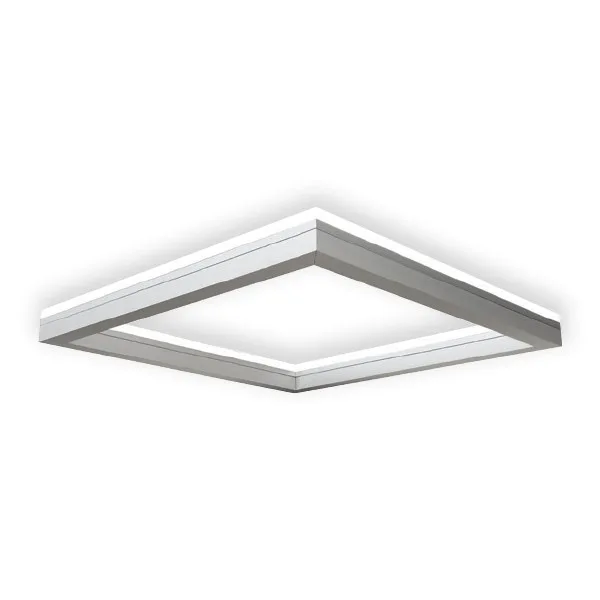

UL - Up Light

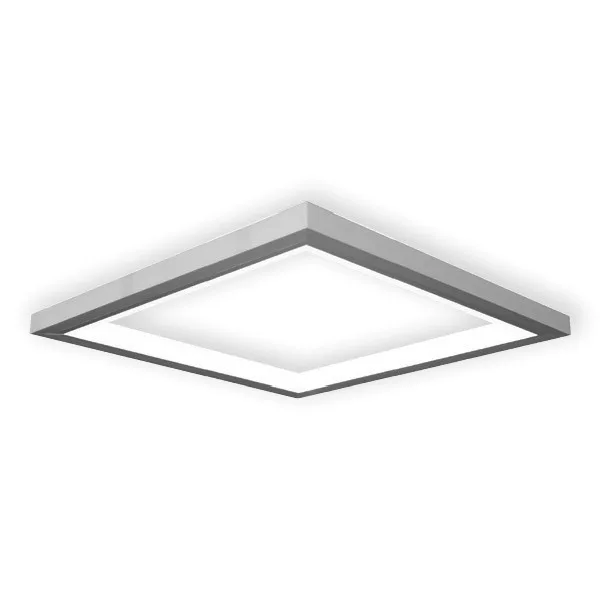

IL - Inside Light

OL - Outside Light

SQL - Square Lens

RLR - Round Lens

FL - Flat Lens

Mounting Options

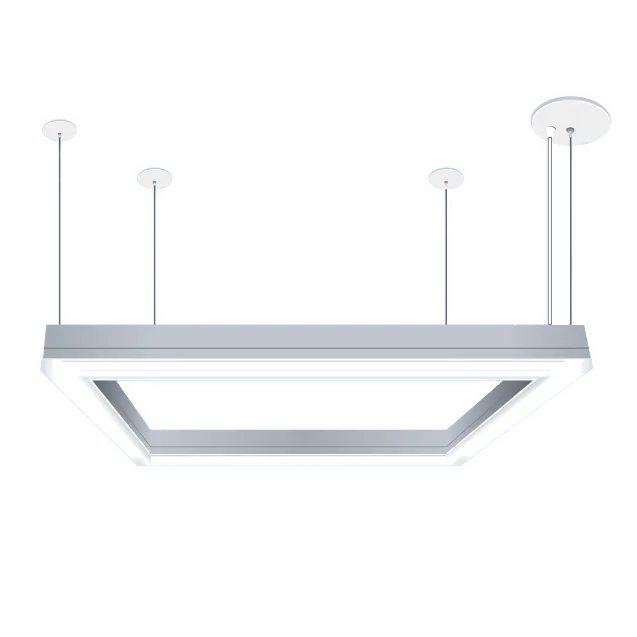

Straight Cable

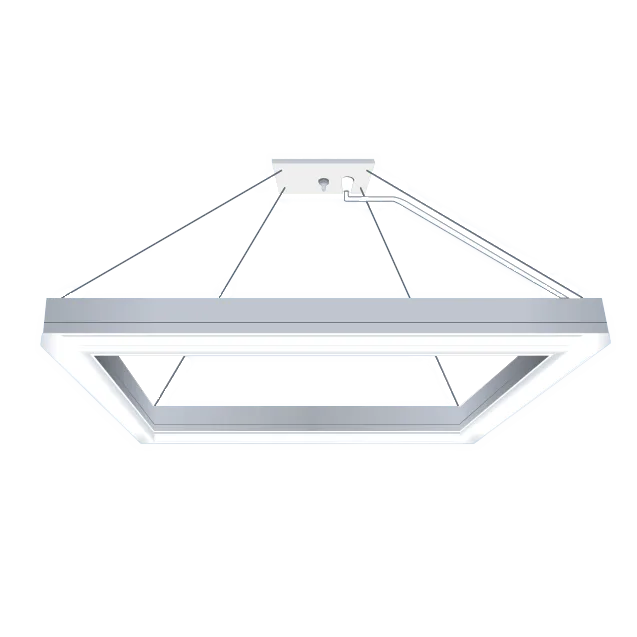

Pyramid Cable

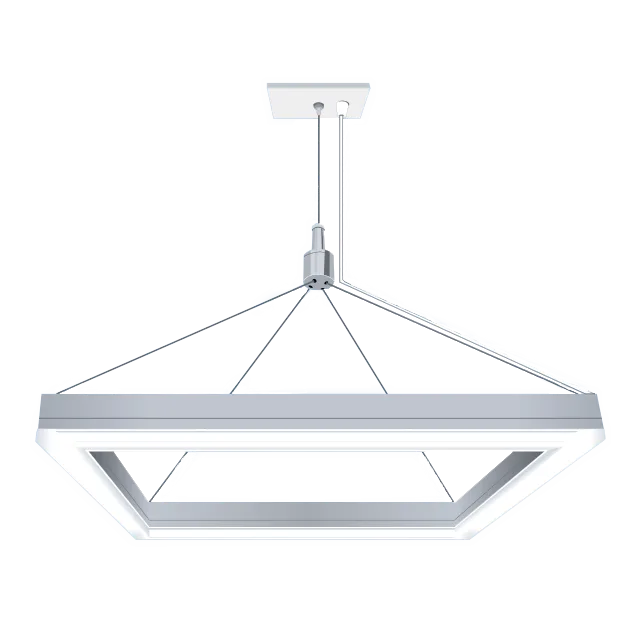

Center Cable

Surface Mount
