ELEMENTS 3

3" Profile Wet Rated Lighting

The ELEMENTS 3 Luminaire brings exceptional lighting to a wide range of wet locations. Its performance isn’t compromised by moisture, offering consistent and reliable illumination that enhances the ambiance while standing up to the challenges of its surroundings

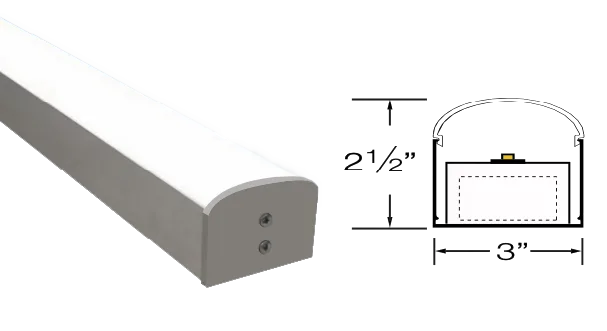

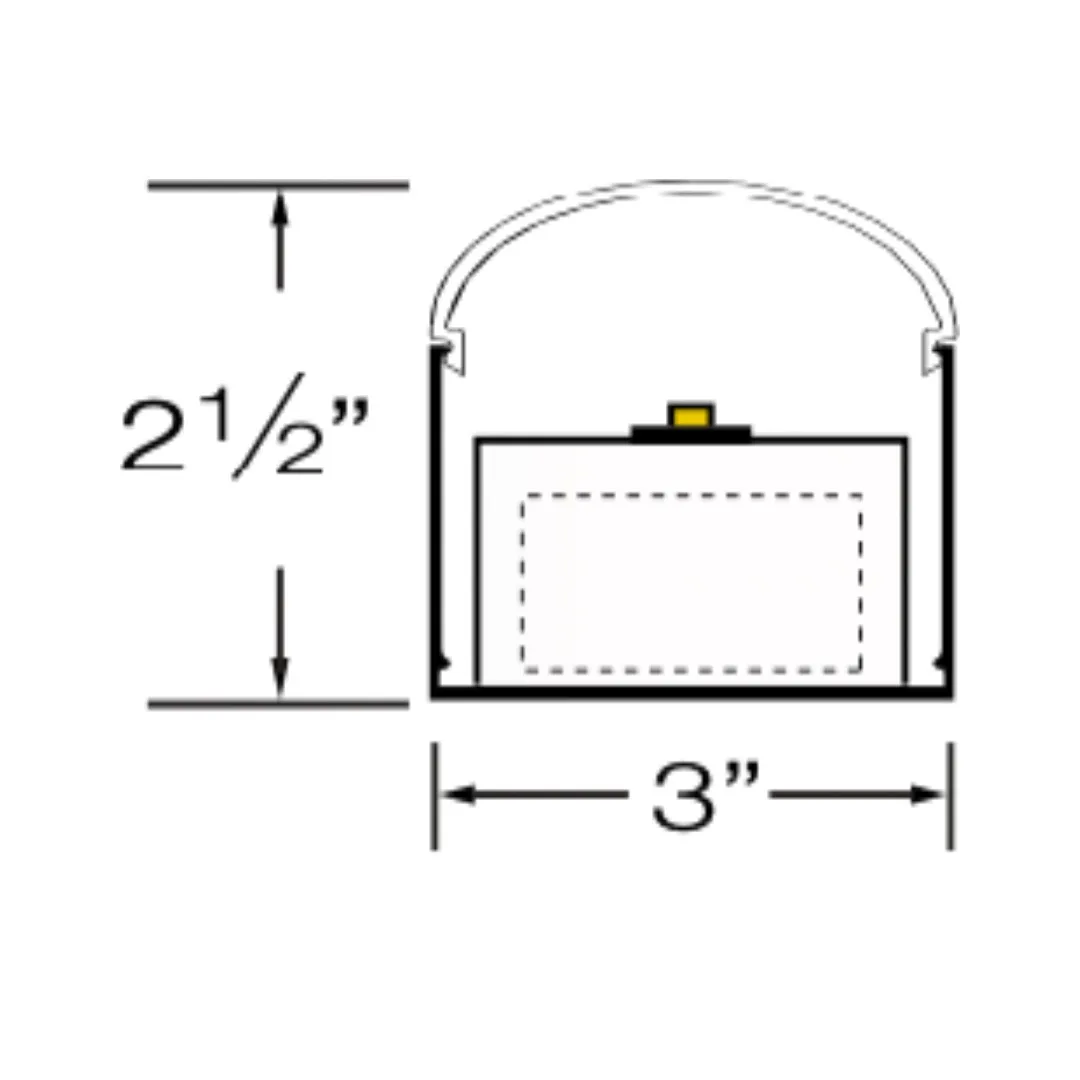

Cross Section

FL
FL
RLR
RLR
SQL
SQL

Features

  • Clean Architectural; Finish
  • Square Lens / Round Lens / Flat Rounded Lens
  • 3″ Wide, Extruded Aluminum Housing
  • Satin Anodized or White Finish Standard; Custom Colors Available
  • Three Lens Styles: Square, Round and Flat
  • Frosted Acrylic Lens, Smooth Uniformity, No Pixelation
  • Three LED Lumen Output Choices; Up to 1244 Lumens / Foot
  • Four LED Color Choices
  • Integral or Remote Drivers, 0-10V Dimming Standard

Applications

  • Outdoor Wet Location
  • Office
  • Retail
  • Residential
  • Commercial
  • Canopies
  • Trellises
  • Stairwells

Download Resources

CUT SHEET
INSTALLATION GUIDE
BROCHURE
FLYER

Housing Finishes

W-White
W
White
S-Satin-1
S
Satin
A-Anti-Microbial
A
Anti Microbial
RGBW-COLOR-TUNING
C
Custom

NOTE:
The actual color of the product may vary from what is seen on electronic devices.
We cannot guarantee that the color you see on your screen accurately reflects the true color of the product.

LED Boards

27K-2700K
27K
2700K
30K-3000K
30K
3000K
35K-3500K
35K
3500K
40K-4000K
40K
4000K

LED DRIVERS

DESCRIPTION

Integral
Universal Voltage, 0-10V Dimming Standard, 1% or 10% Dimming

Configurations

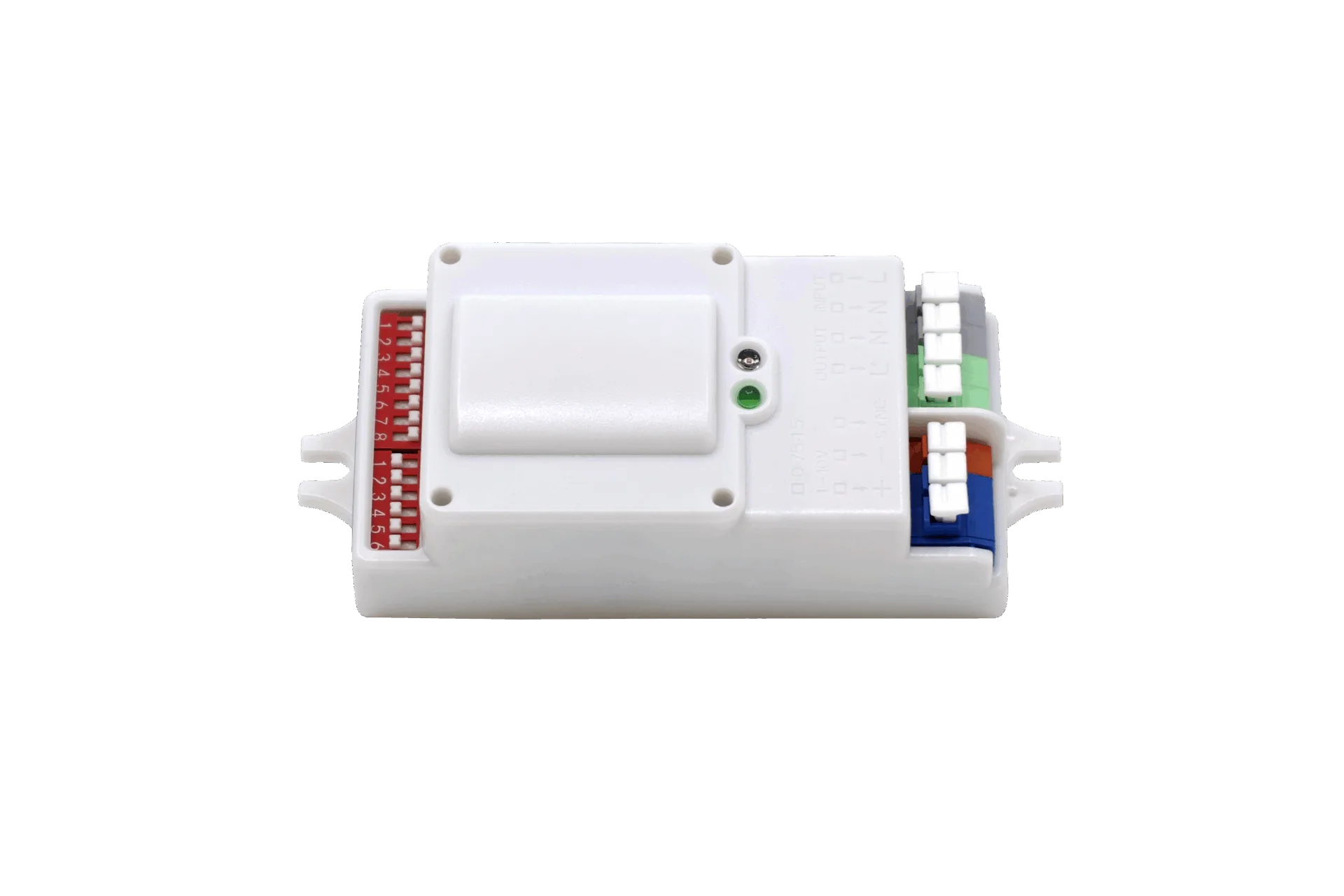

MS - Motion Sensor
MSP - Bi-Level Motion Sensor

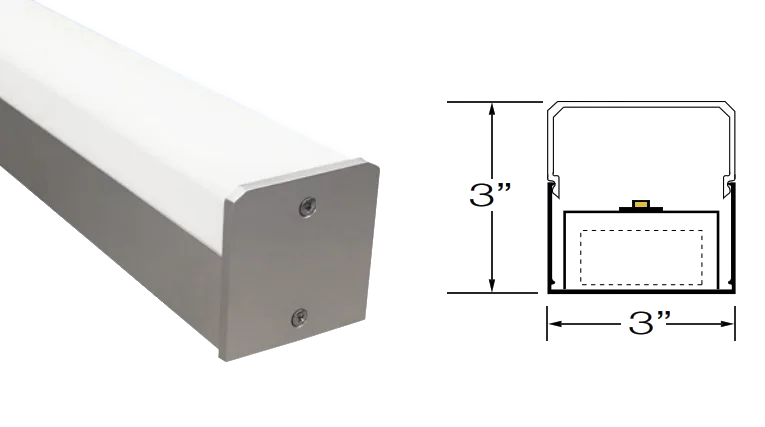

SQL - Square Lens

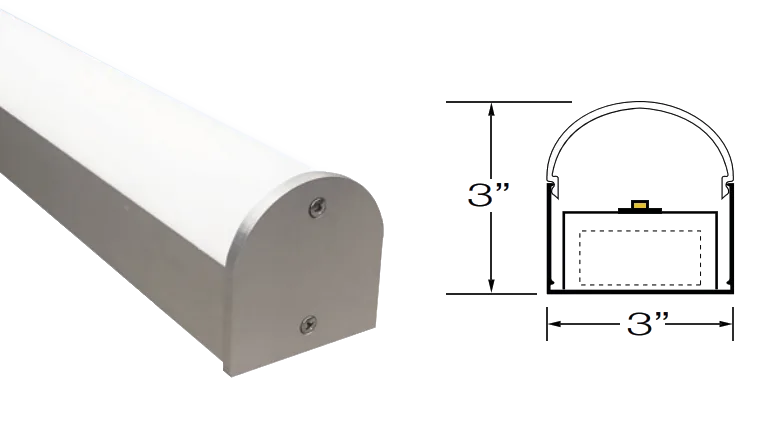

RLR - Round Lens
FL - Flat Lens

Mounting Options

SM
Surface Mount

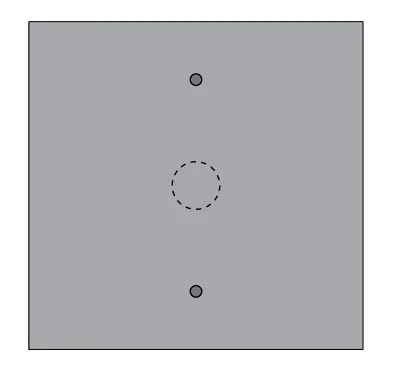

JBP
J Box Plate
