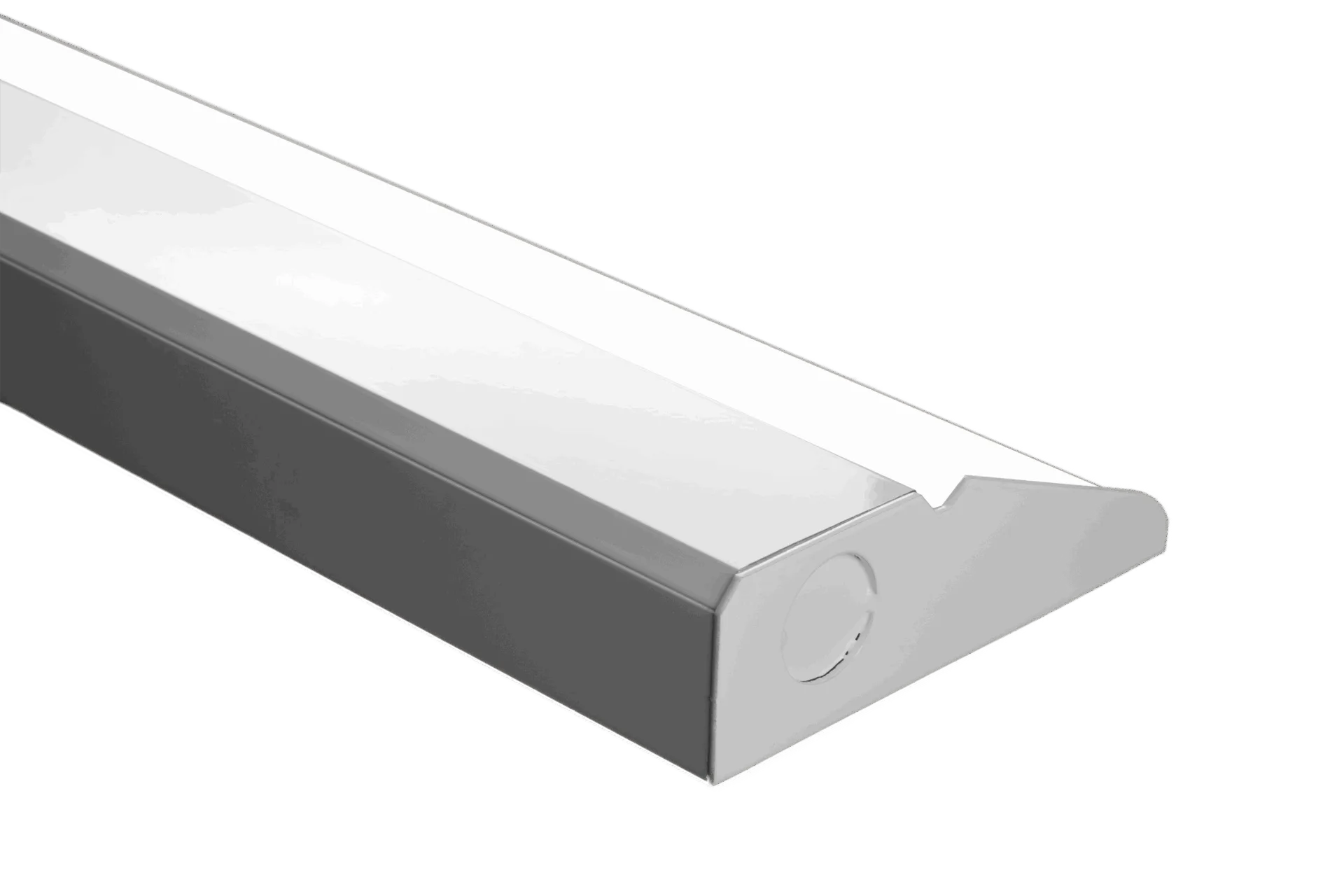

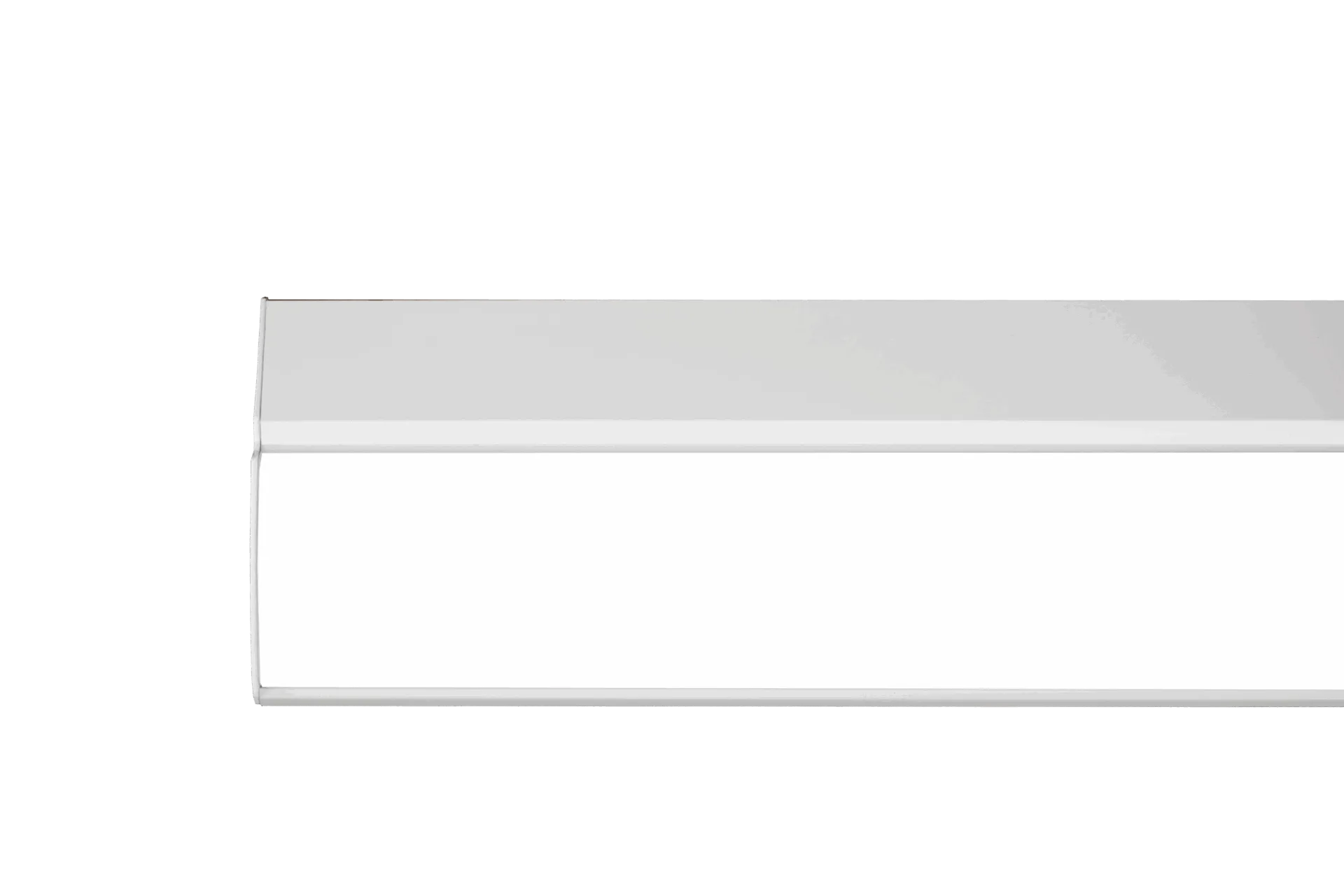

COVE 5

High Performance Cove Indirect Lighting

The CV5 is the third fixture in the Cove series, providing a versatile lighting solution for applications like wall washing, wall grazing, and wall sconces. Its asymmetric light distribution focuses light in one direction, delivering smooth, even illumination for both regular and inverted cove lighting. The wider housing allows for easy integration of various LED colors, drivers, finishes, and configurations, enabling full customization. Crafted from precision-extruded aluminum, it features a premium finish that enhances both aesthetics and durability.

Cross Section

CV5
CV5
Cove 5 Flat Lens
CV5 - RL
CV5 - RL
Cove 5 Rounded Lens

Features

CONSTRUCTION
High quality precision extruded aluminum that has a superior
strength-to-weight ratio than steel allowing for longer runs and a premium finish and wide spread acrylic lens for broad even light distribution.

ASSYMETRIC LIGHT DISTRIBUTION
A carefully designed asymmetric light distribution, focusing light in one direction while providing smoother illumination compared to symmetric light distributions.

VERSATILE SOLUTON
The CV5 is a highly versatile lighting solution, perfectly suited for a wide range of applications. Whether it’s wall washing, wall grazing, or serving as a wall sconce, the CV5 delivers. Its adaptability extends to both regular and inverted cove lighting solutions, making it an ideal choice for various architectural and design scenarios due to the consistent and reliable illumination.

CUSTOMIZATION
The wider housing enables easy integration of various new LED types, colors, drivers, finishes, configurations, and mounting options, allowing you to fully customize your fixture to meet specific needs.

Applications

• Coves
• Pockets
• Under cabinet
• Under cabinet
• Indirect features
• Display
• Pockets



Download Resources

CUT SHEET
INSTALLATION GUIDE
SUBMITTAL FORM
BROCHURE

Housing Finishes

W-White
W
White
S-Satin-1
S
Satin
B-Black
B
Black
A-Anti-Microbial
A
Anti Microbial
RGBW-COLOR-TUNING
C
Custom

NOTE:
The actual color of the product may vary from what is seen on electronic devices.
We cannot guarantee that the color you see on your screen accurately reflects the true color of the product.

LED Boards

27K-2700K
27K
2700K
30K-3000K
30K
3000K
35K-3500K
35K
3500K
40K-4000K
40K
4000K
R-STATIC-RED
R
Static Red
G-STATIC-GREEN
G
Static Green
B-STATIC-BLUE
B
Static Blue
RGBW-COLOR-TUNING
RGBW
Color Tuning
DTW-DIM-TO-WARM
DTW
Dim to Warm
TW-TUNABLE-WHITE
TW
Tunable White

LED DRIVERS

DESCRIPTION

UNV0%
0 – 10V 0% Dimming
UNV1%
0 – 10V 1% Dimming
UNV10%
0 – 10V 10% Dimming
UNV(CD)%
0 – 10V Custom Dimming
TRIAC
2 Wire Dimming Driver
DALI
DALI Dimming Driver
LTRN
Lutron Dimming Driver

Configurations

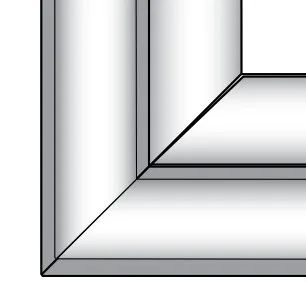

Miter Cut Corner

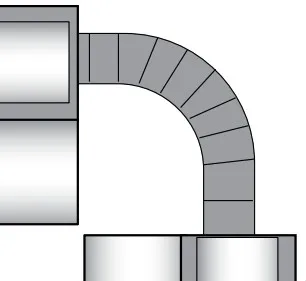

Whipped Corner
Test Switch
Bi-level Motion Sensor

Mounting Options

Surface Mount

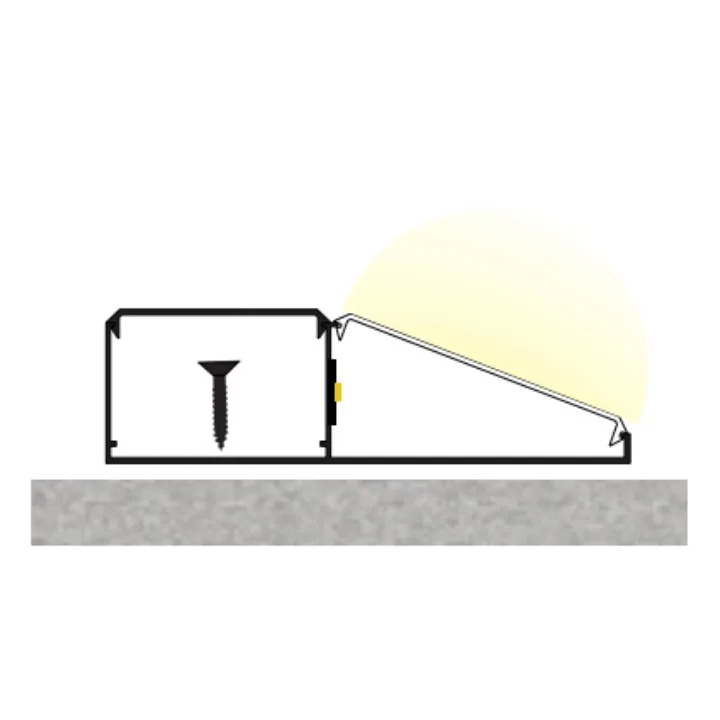

SMF
Surface Mount Flat
SMW
Surface Mount Wall

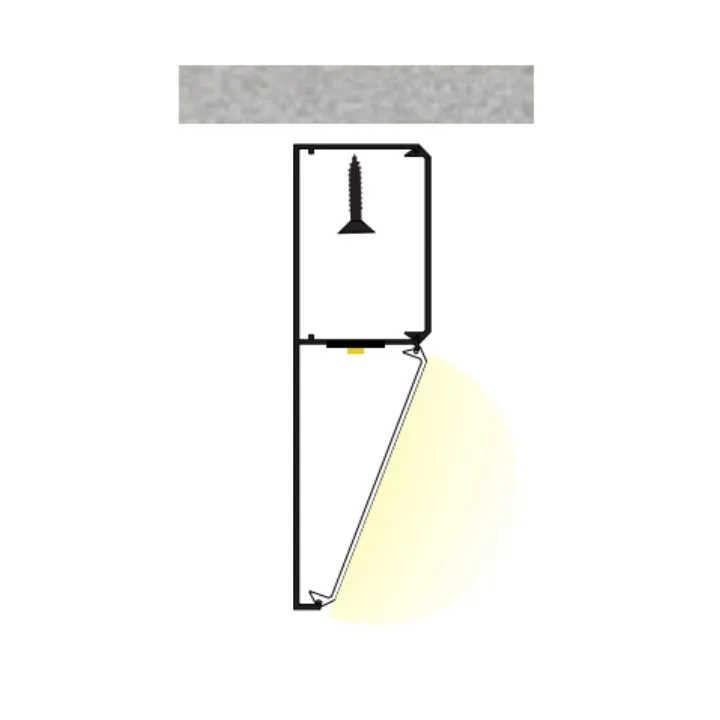

SMV
Surface Mount Vertical
JBP
J Box Plate

Pendant Mount

CSHD
Cable Suspended Horizontal Down Light

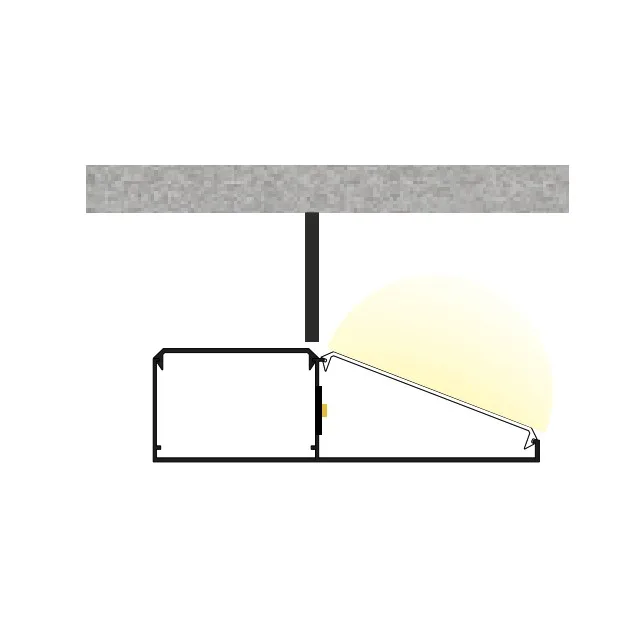

CSHU
Cable Suspended Horizontal Up Light

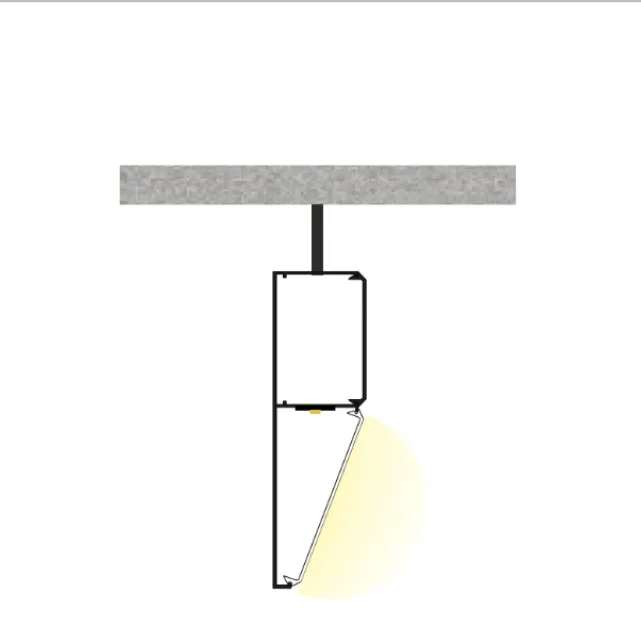

CSV
Cable Suspended Vertical
