COVE 2

Field Curvable Cove Indirect Lighting

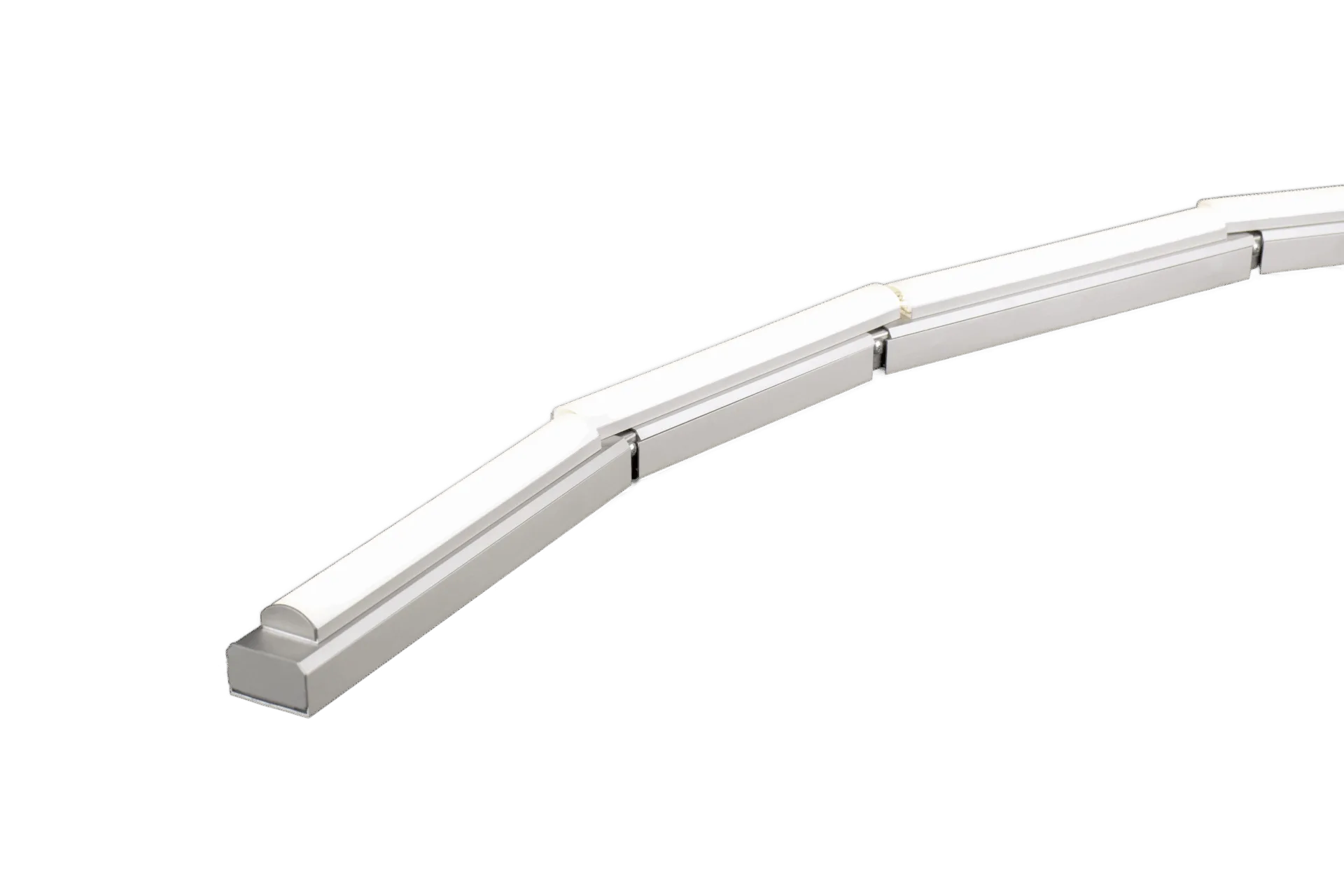

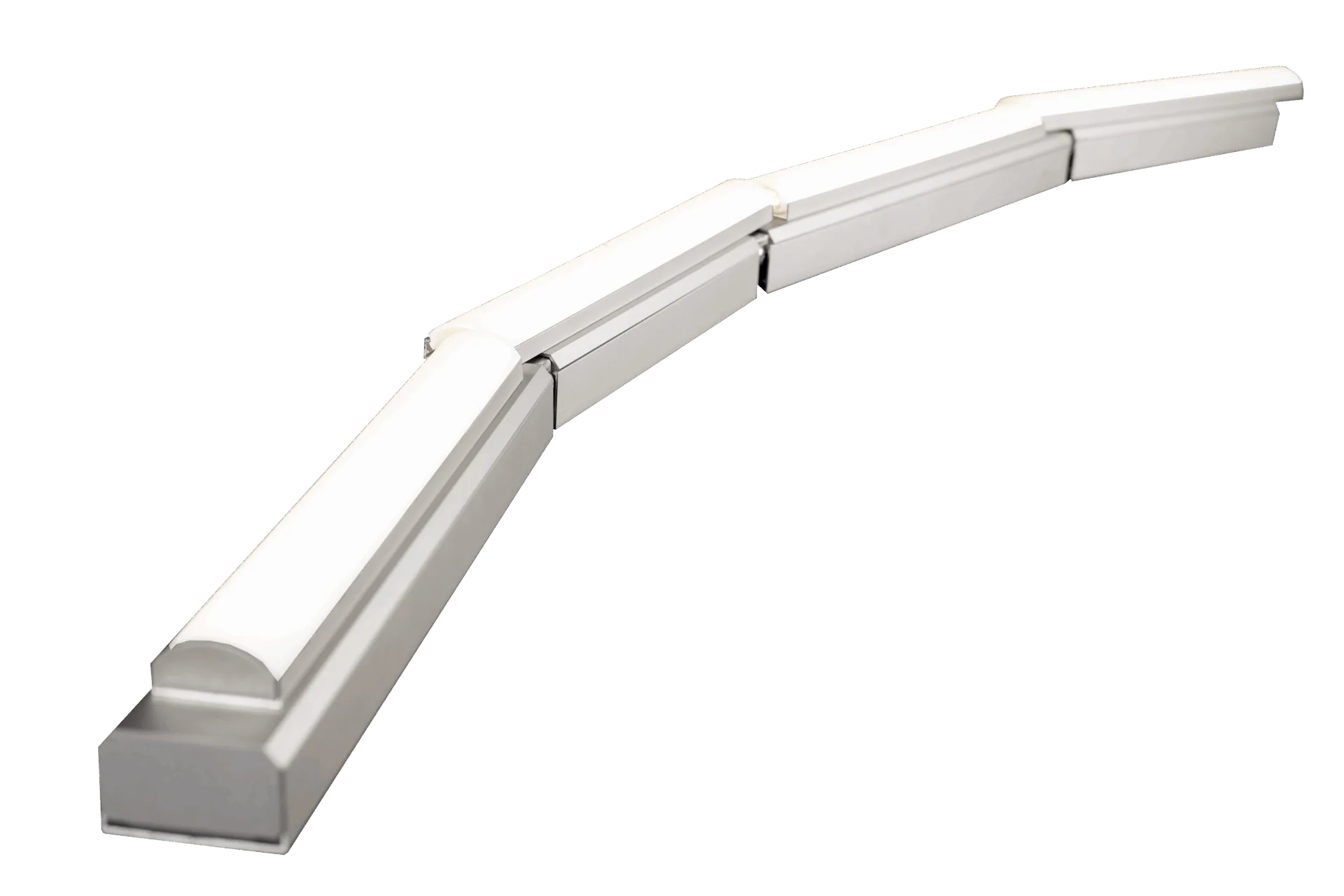

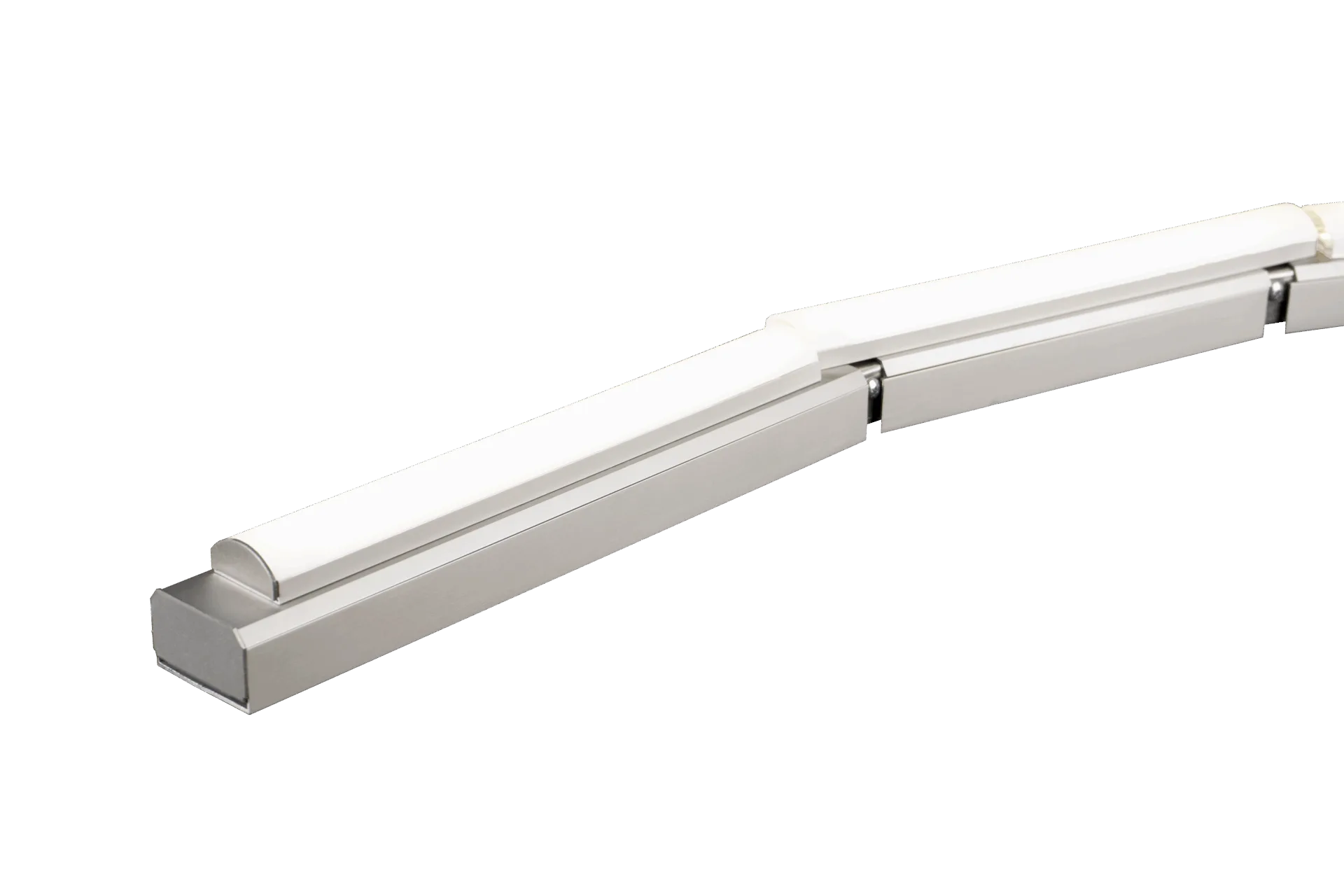

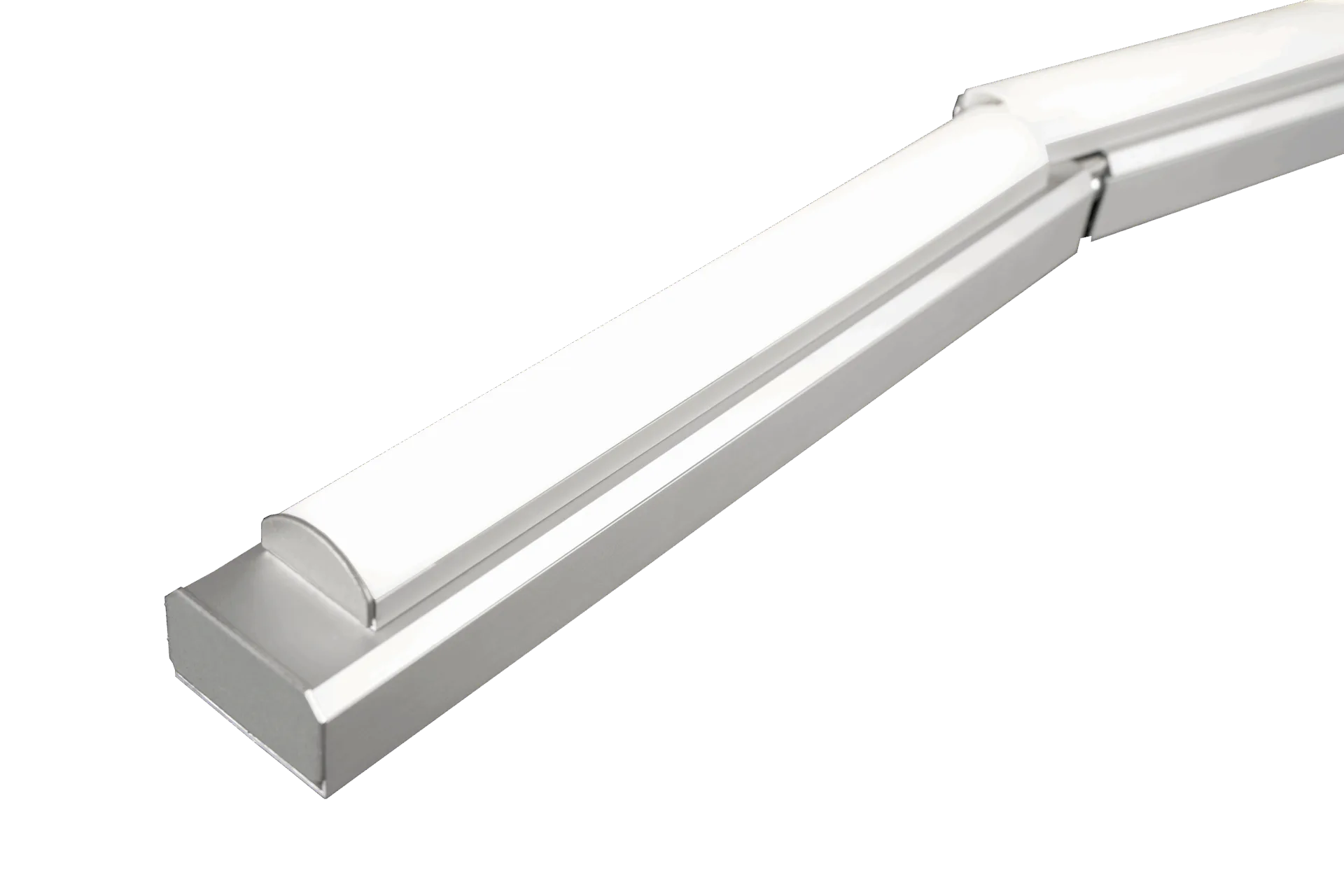

The Cove 2 (CV2) is the second fixture in the Cove series, featuring a 2” wide profile that’s ideal for flexible lighting solutions in tight spaces. Unlike the Cove 1, which uses remote drivers, the CV2 is designed with integral drivers for easier installation and versatility. Made from high-quality precision-extruded aluminum, it includes an acrylic lens that provides even light distribution. Its field-curvable design allows it to follow architectural curves as tight as a 2′ radius.

Cross Section

Cove 2
CV2
Cove 2

Features

CONSTRUCTION
High quality precision extruded aluminum that has a superior
strength-to-weight ratio than steel allowing for longer runs and a
premium finish and wide spread acrylic lens for broad even light
distribution.

FIELD CURVABLE
Field curvable feature allows you to shape the fixture to any architectural contour or curve as tight as a 2′ radius.

STRAIGTH CONFIGURATION
Continuous straight runs up to 12′ in length with one single extrusion. Longer runs are made using multiple sections.

CUSTOMIZATION
Many options of the latest LED types, LED colors, drivers, finishes, configurations, mounting & lengths to customize your fixture.

Applications

  • Coves
  • Pockets
  • Display
  • Under-counters
  • Under-cabinets
  • Display
  • Indirect Features

Download Resources

CUT SHEET
INSTALLATION GUIDE
SUBMITTAL FORM
BROCHURE

Housing Finishes

W-White
W
White
S-Satin-1
S
Satin
B-Black
B
Black
A-Anti-Microbial
A
Anti Microbial
RGBW-COLOR-TUNING
C
Custom

NOTE:
The actual color of the product may vary from what is seen on electronic devices.
We cannot guarantee that the color you see on your screen accurately reflects the true color of the product.

LED Boards

27K-2700K
27K
2700K
30K-3000K
30K
3000K
35K-3500K
35K
3500K
40K-4000K
40K
4000K
R-STATIC-RED
R
Red
G-STATIC-GREEN
G
Green
B-STATIC-BLUE
B
Blue
RGBW-COLOR-TUNING
RGBW
Color Tuning
DTW-DIM-TO-WARM
DTW
Dim to Warm
TW-TUNABLE-WHITE
TW
Tunable White

LED DRIVERS

DESCRIPTION

UNV0%
0 – 10V 0% Dimming
UNV1%
0 – 10V 1% Dimming
UNV10%
0 – 10V 10% Dimming
UNV(CD)%
0 – 10V Custom Dimming
TRIAC
2 Wire Dimming Driver
DALI
DALI Dimming Driver
LTRN
Lutron Dimming Driver

Configurations

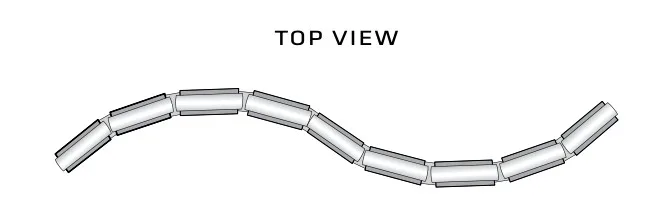

FLX - Flexible, Field Curvable

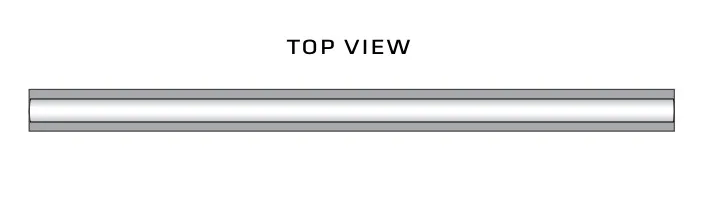

ST - Straight

Mounting Options

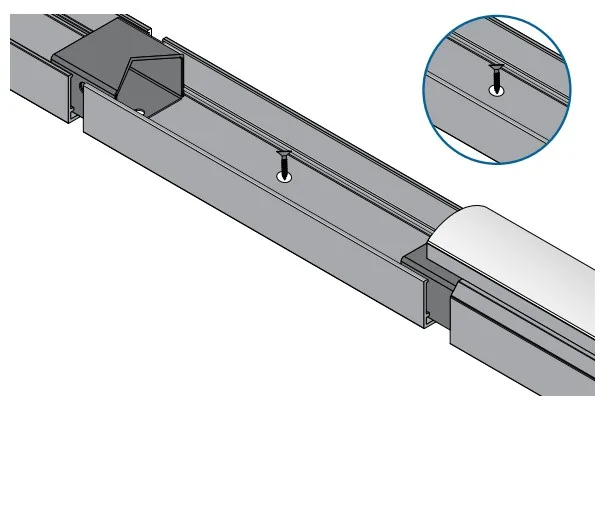

IM
Inside Screw Mount (Standard)

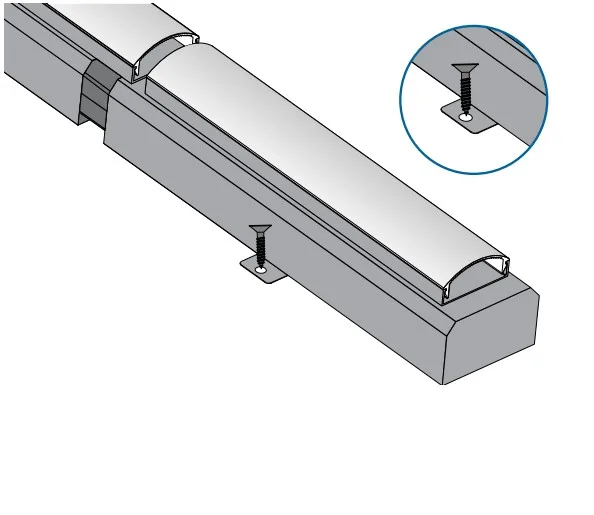

TM
Tab Mount (Optional)
