ALX4

Miniature Profile

With ALX4, your creative vision becomes a reality. This exceptional luminaire comes in two powerful versions – the High Performance System and the Standard Performance System – both engineered to deliver unmatched illumination and reliability.

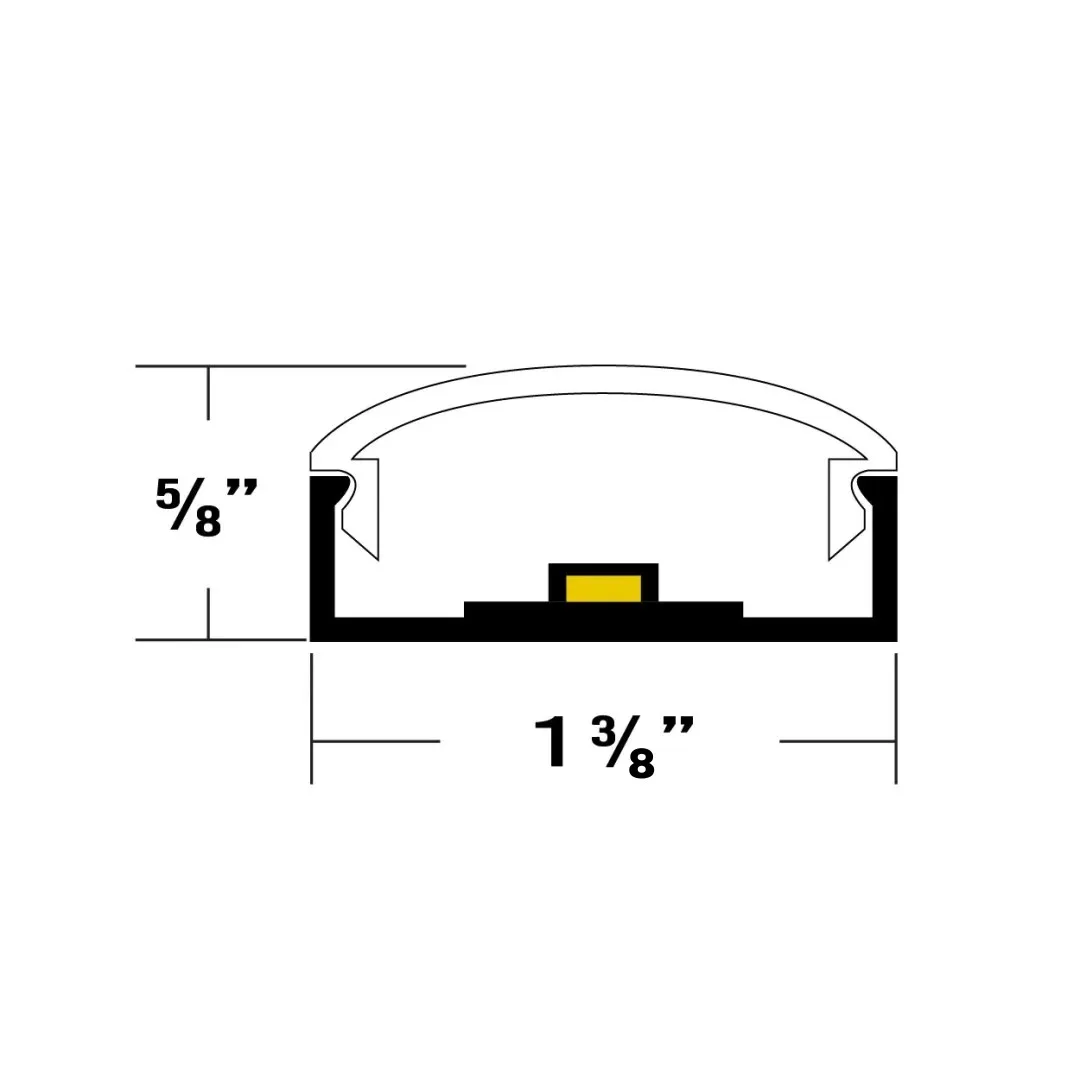

Cross Section

ALX4-Cross-section
ALX4 - HP / SP

Features

ALX4-LED-SP: STANDARD PERFORMANCE – LED Tape Up to 220L / FT

ALX4-LED-HP: HIGH PERFORMANCE – LED Boards Up to 1100L / FT

  • Low Profile Slim Clean Architectural Styling
  • Surface Mount / Three Mounting Options
  • 1 3/8″ Wide X 5/8″ High Extruded Aluminum Housing
  • Satin Anodized or White Paint Standard
  • Flat Rounded Frosted Acrylic Lens
  • Four LED Color Choices
  • Remote Drivers, 0-10V Dimming Available

Applications

  • Display
  • Cove Lighting
  • Indirect
  • Accent
  • Task
  • Under cabinet

Download Resources

CUT SHEET

Housing Finishes

W-White
W
White
S-Satin-1
S
Satin
A-Anti-Microbial
A
Anti Microbial
RGBW-COLOR-TUNING
C
Custom

NOTE:
The actual color of the product may vary from what is seen on electronic devices.
We cannot guarantee that the color you see on your screen accurately reflects the true color of the product.

LED Boards

27K-2700K
27K
2700K
30K-3000K
30K
3000K
35K-3500K
35K
3500K
40K-4000K
40K
4000K

LED DRIVERS

DESCRIPTION

Remote LED Drivers with Enclosure (Included)
Remote, Universal Voltage (120-277 / 12 VDC) (Order Separately)

Mounting Options

Mounting Options & Lead Wires

TM

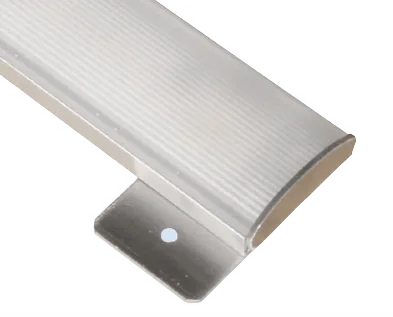

Tab Mount
IM
Inside Screw Mount
DFT

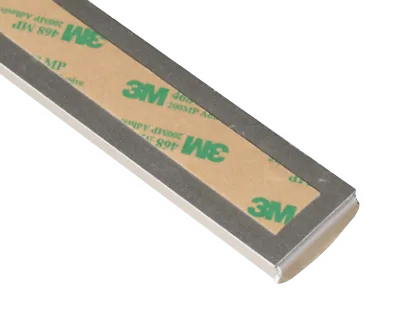

Tape Mount
3" Lead Wire Standard

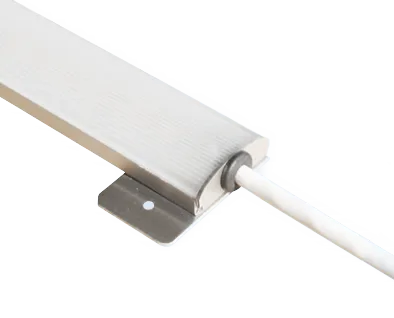

Right Side Lead Wire for TM -Tab Mount
