RECTANGULO

1 3/8" Profile Rectangle Lighting

The RECTANGULO Luminaire is a state-of-the-art solution designed to elevate the lighting experience in a wide range of applications. From offices and retail spaces to residential and commercial areas, this versatile fixture delivers exceptional performance and style, making it the perfect choice for general illumination and accentuating specific areas.

Cross Section

SQL

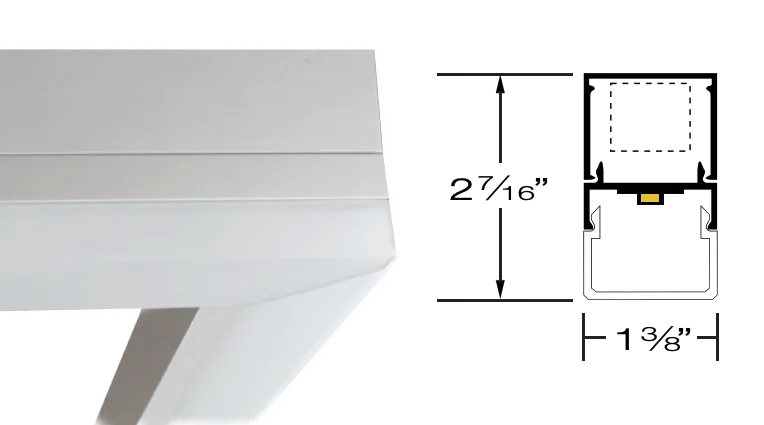

Square Lens

RLR

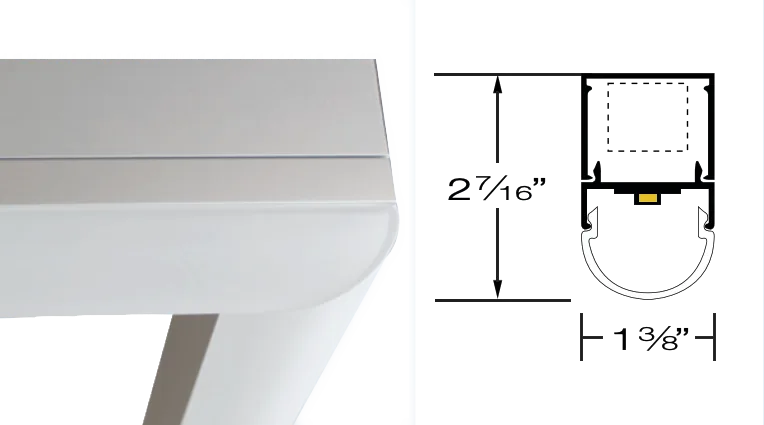

Round Lens

FRL

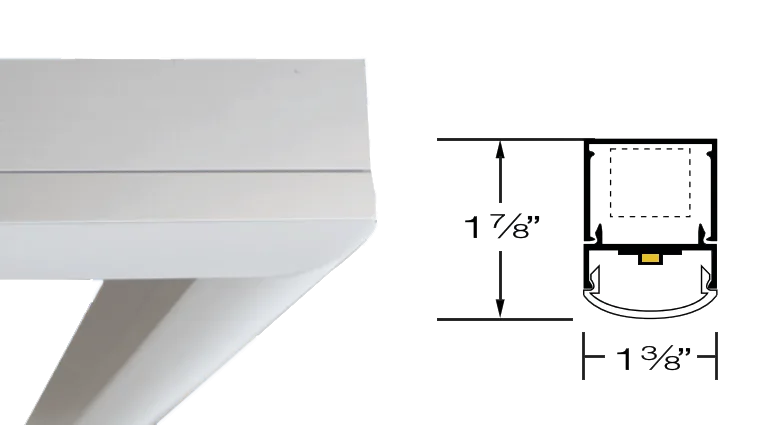

Flat Round Lens

Features

Clean Architectural; Squares with No Visible Hardware
1 3/8″ Wide, Extruded Aluminum Housing
Satin Anodized or White Paint Standard; Custom Colors Available
Three Lens Styles: Square, Round and Flat
Frosted Acrylic Lens, Smooth Uniformity, No Pixelation
Four Light Direction Options: Up, Down, Inside and Outside
Three LED Lumen Output Choices and Up to 1100 Lumens / Foot
Four LED Color Choices
Integral or Remote Drivers, 0-10V Dimming Standard

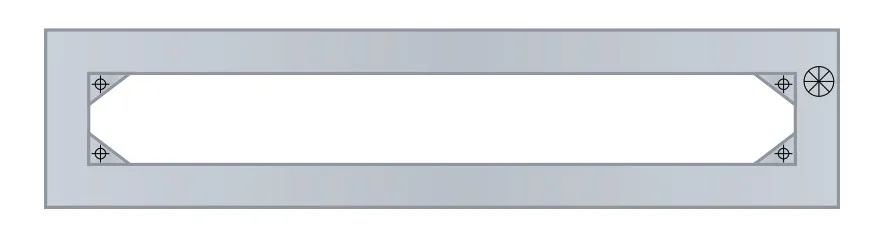

Pendant or Surface MountOffice, Retail, Residential, Commercial

Applications

Office
Retail
Residential
Commercial
General Illumination
Conference Rooms
Atriums

Download Resources

CUTSHEET

FLYER

Housing Finishes

White

Satin

Anti Microbial

Custom

NOTE:
The actual color of the product may vary from what is seen on electronic devices.
We cannot guarantee that the color you see on your screen accurately reflects the true color of the product.

LED Boards

27K

2700K

30K

3000K

35K

3500K

40K

4000K

LED DRIVERS

DESCRIPTION

Integral

Universal Voltage, 0-10V Dimming Standard, Custom Programmable

Remote (Included)

Universal Voltage, 0-10V Dimming Standard, Custom Programmable

Configurations

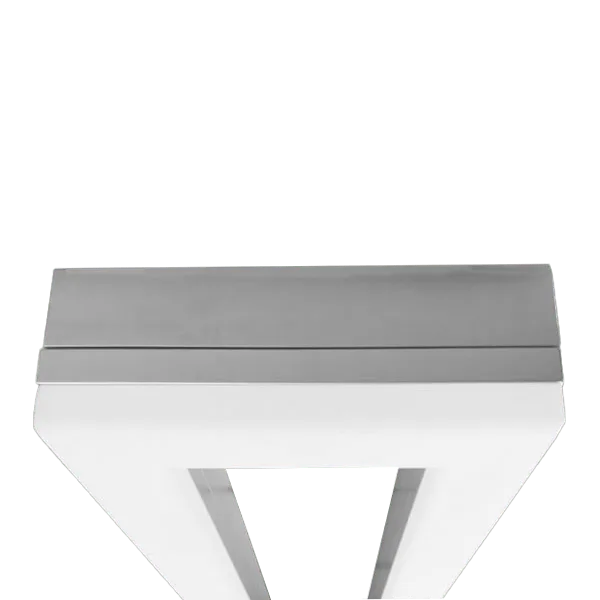

DL - Down Light

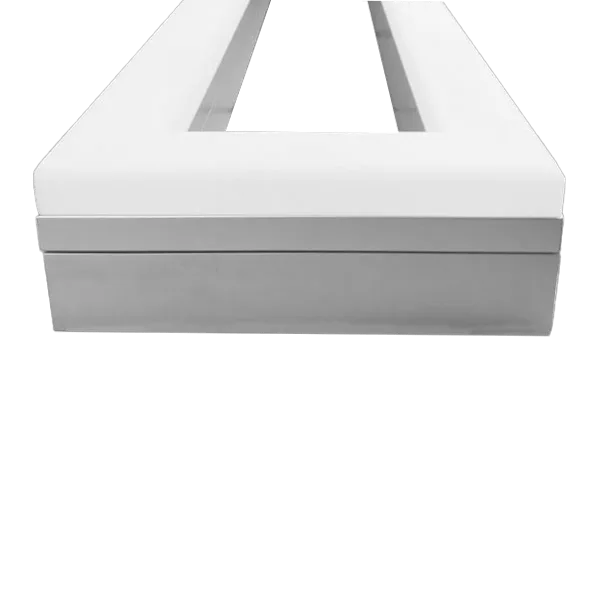

UL - Up Light

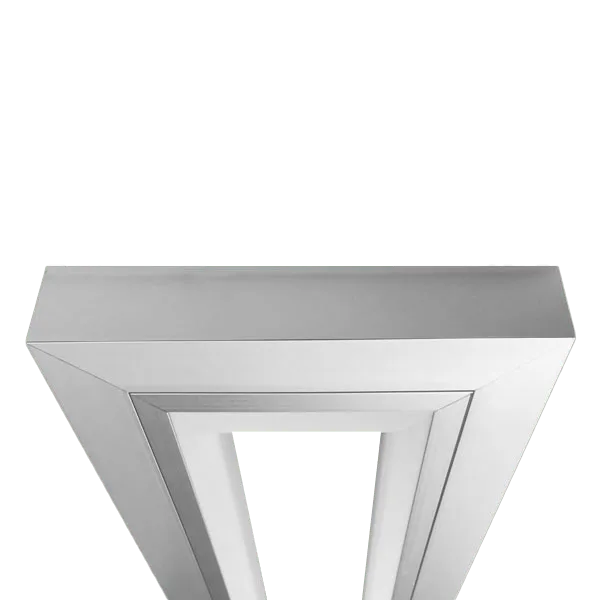

IL - Inside Light

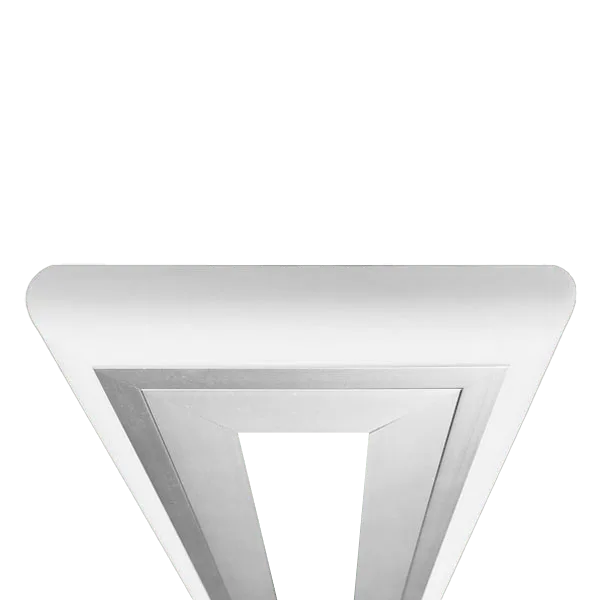

OL - Outside Light

SQL - Square Lens

RLR - Round Lens

FRL - Flat Round Lens

Mounting Options

Cable Suspended

SK36

36" Cable Kit

SK48

48" Cable Kit

SK72

72" Cable Kit
