RECESSED 2

2" Recessed Linear Lighting

The Recessed 2 is a 2-inch wide recessed lighting fixture with high-quality extruded aluminum housing, available in lengths up to 12 feet with custom length options. It offers even, pixel-free illumination with a snap-on DR acrylic lens and various trim and LED options, including RGBW and tunable white, perfect for environments like corporate offices and retail spaces.

Cross Section

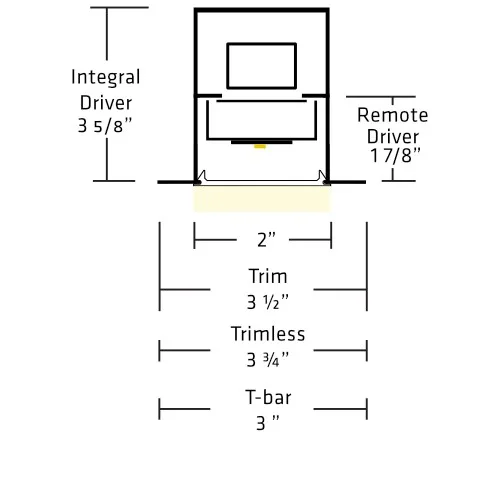

RC2-FL
FL

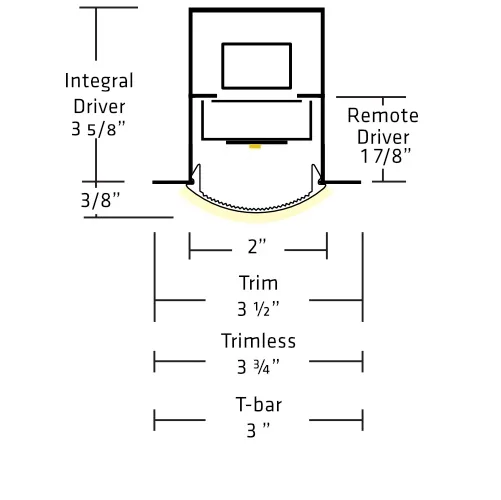

FRL RC2
FRL

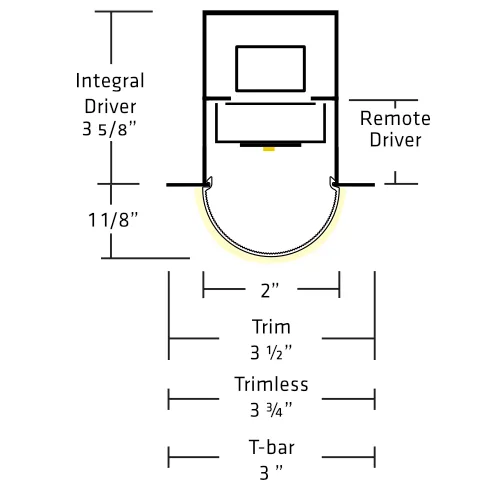

RC2-RL
RL
RC2-SL
SL

Features

Description

The Recessed series is a family of high performance, linear luminaires which feature a pre-installed trim flange suitable for gypsum mud or T-Bar ceiling.

Construction

High quality extruded aluminum housing provides a superior fixture enclosure and Extruded DR acrylic frosted lenses ensure pixel free and widespread uniformity.

Performance

Premium quality white LED boards providing up to 1800 lumens / ft. Various options of LED drivers, programmable and 0-10V dimming. Other options available such as RGBW, tunable white and dim to warm.

Fixture Configurations

Straight or Patterns configurations, single housing up to 12′. Longer runs are achieved with multiple fixtures butt together for a seamless appearance. Endless patterns designs are possible and add a new character to your design.

Installation

Various ways of simple installation and easy access for maintenance.

Applications

  • Corporate offices

  • Retail spaces

  • Hospitality environments

  • Healthcare facilities

  • Educational institutions

  • High-end residential

  • Museums and galleries

  • Conference and meeting rooms

  • Airports and transit hubs

  • Government and civic buildings

Download Resources

Cutsheet
Installation Guide
Submittal Drawing
Brochure
RC2-FL PHOTOMETRICS
RC2-FRL PHOTOMETRICS
RC2-RL PHOTOMETRICS
RC2-SL PHOTOMETRICS

Housing Finishes

S-Satin-1
S
Satin
W-White
W
White
B-Black
B
Black
A-Anti-Microbial
A
Anti Microbial
RGBW-COLOR-TUNING
C
Custom

NOTE:
The actual color of the product may vary from what is seen on electronic devices.
We cannot guarantee that the color you see on your screen accurately reflects the true color of the product.

LED Boards

27K-2700K
27K
2700K
30K-3000K
30K
3000K
35K-3500K
35K
3500K
40K-4000K
40K
4000K
R-STATIC-RED
R
Red
G-STATIC-GREEN
G
Green
B-STATIC-BLUE
B
Blue
RGBW-COLOR-TUNING
RGBW
Color Tuning
DTW-DIM-TO-WARM
DTW
Dim to Warm
TW-TUNABLE-WHITE
TW
Tunable White

LED DRIVERS

DESCRIPTION

UNV0%
0 – 10V 0% Dimming
UNV1%
0 – 10V 1% Dimming
UNV10%
0 – 10V 10% Dimming
UNV(CD)%
0 – 10V Custom Dimming
TRIAC
2 Wire Dimming Driver
LTRN
Lutron Dimming Driver
DALI
DALI Dimming Driver

Configurations

RC2 - STRAIGHT 1
ST - Straight, Single Housing
RC2 - Multiple Housing
ST - Straight, Multiple Housing
RC2 - PATTERN 1
PRN - Pattern

Mounting Options

T Bar

TB - TBAR
TB
T Bar (Ceiling)
TB - TBAR WALL:CEILING
TB
T Bar (Wall/Ceiling Corner)

Bracket & Mud Flange

Recessed BKT
BKT
Bracket

Mud Flange

Recessed FSM
FSM
Flange Screw Mount (Trimless, Mud Flange)
Recessed FSM WALL CEILING
FSM
Flange Screw Mount (Trimless, Mud Flange) Wall/Ceiling Corner

Inside Screw Mount

Recessed Inside Mount, Self Tapping Screw
ISM
Inside Screw Mount, Self Tapping Screw
Recessed Inside Mount, 1:4 : 20 Threaded Rod
ISM
Inside Screw Mount, 1/4 20 Threaded Rod
