LINEA 2

2" Profile Linear Lighting

The Linea Series is a sophisticated collection of lighting fixtures meticulously designed to elevate your spaces to new heights of elegance. With a perfect blend of style and functionality, this product family offers a range of features that cater to your lighting needs like never before.

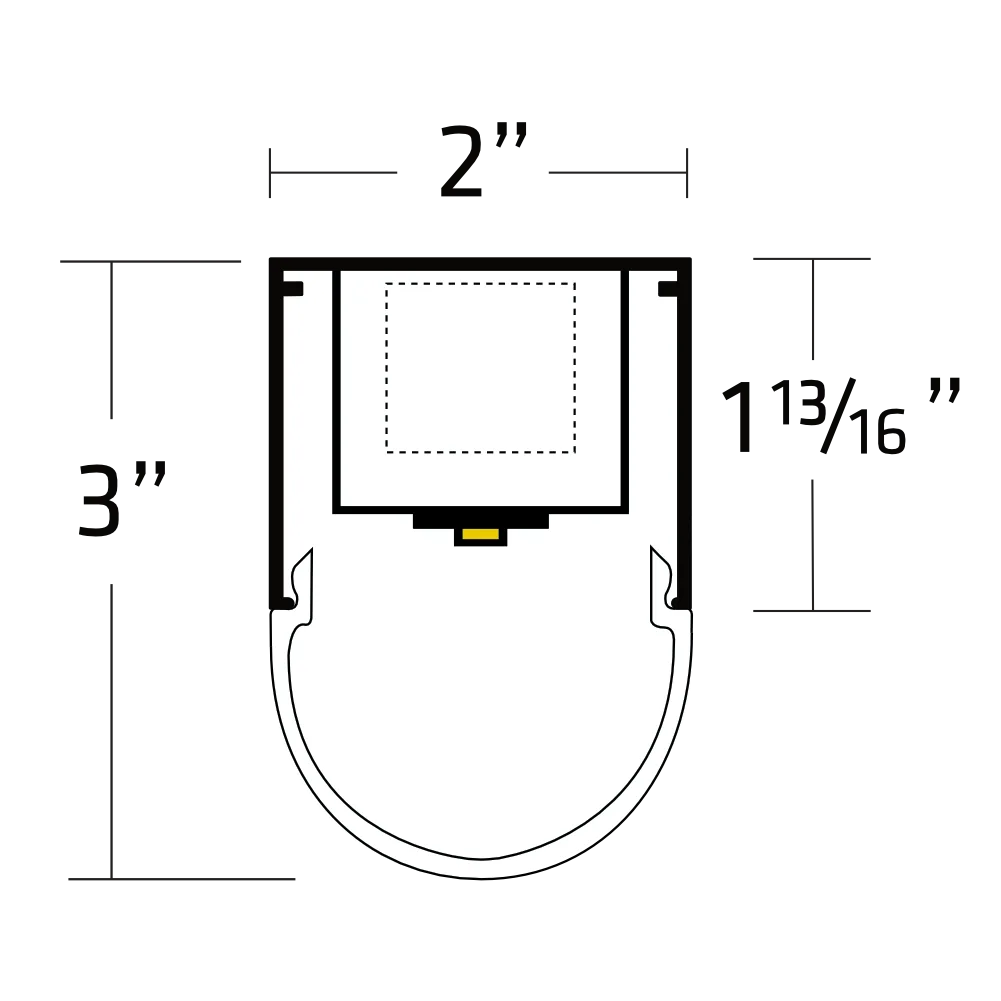

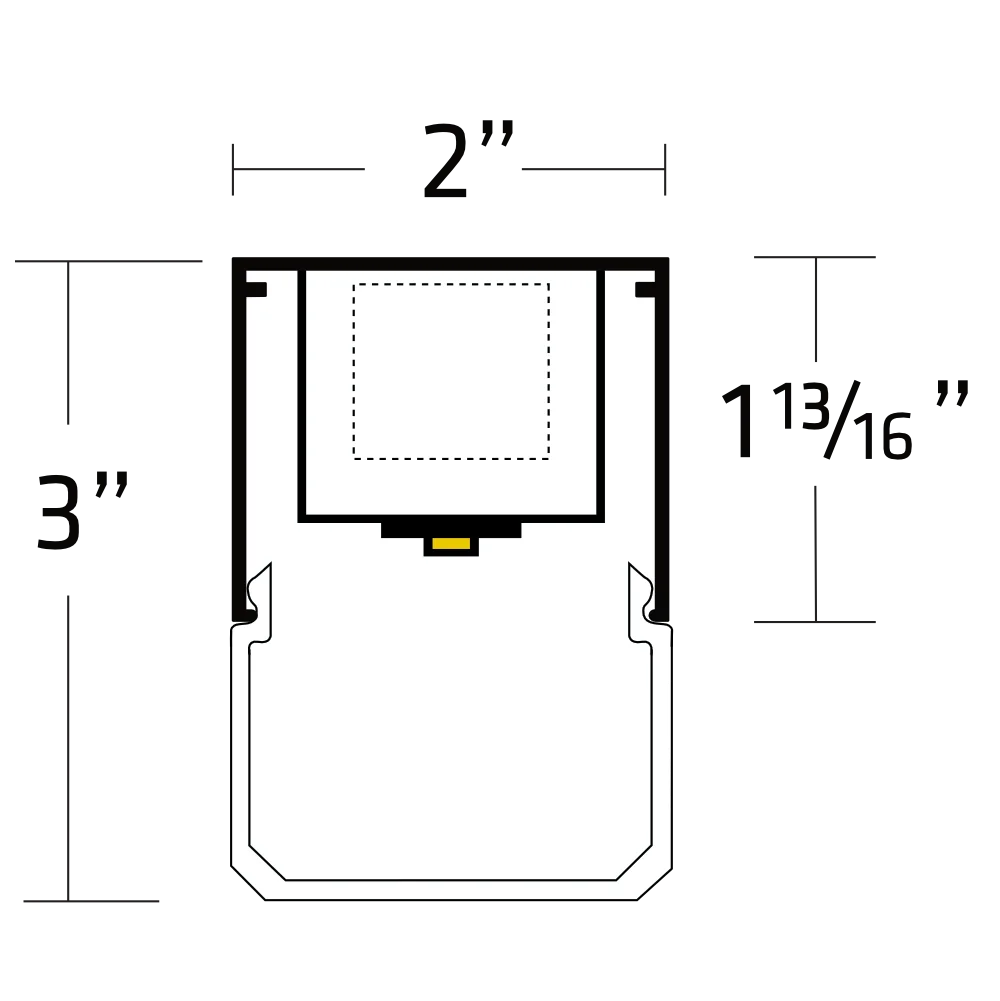

Cross Section

SQL

RLR

FRL

Features

Clean Architectural Styling; No Visible Hardware
Flat Rounded Lens / Round Lens / Square Lens
Pendant or Surface Mount
2″ Wide Extruded Aluminum Housing
Satin Anodized or White Paint Standard; Custom Colors Available
Flat Rounded White Frosted Acrylic Lens with Smooth Uniformity and No Pixelation
Three LED Lumen Output Choices and Up to 1100 Lumens / Foot
Four LED Colors Choices
Two Endcap Choices
Integral Drivers, 0-10V or 1% Dimming Available

Applications

Corridors
Restrooms
Closets
Stack Lighting
Mirror Lighting
Cove Lighting
Parking Structures
Hallways

Download Resources

CUT SHEET (FRL)

CUT SHEET (RLR)

CUT SHEET (SQL)

BROCHURE

FLYER

Housing Finishes

White

Satin

Anti Microbial

Custom

NOTE:
The actual color of the product may vary from what is seen on electronic devices.
We cannot guarantee that the color you see on your screen accurately reflects the true color of the product.

LED Boards

27K

2700K

30K

3000K

35K

3500K

40K

4000K

LED DRIVERS

DESCRIPTION

Integral

Universal Voltage, 0-10V Dimming Standard, 1% or 10% Dimming

Configurations

MS - Motion Sensor

MSP - Bi-Level Motion Sensor

EM1 - 800 Lumen

EM2 - 1400 Lumen

SQL - Square Lens

RLR - Round Lens

FRL - Flat Round Lens

Mounting Options

Cable Suspended

SK36

36" Cable Kit

SK48

48" Cable Kit

SK72

72" Cable Kit

Surface Mount

JBP

J Box Plate
