ALX3 - DR

Decorative Linear Lighting

The ALX3-DR is a durable, high-performance linear fixture with an extruded aluminum housing up to 12 feet long. It features a satin anodized or white finish, snap-on or frosted DR acrylic lens, and curved reflectors in white acrylic or perforated aluminum with an acrylic overlay. Integrated 0-10V dimming comes standard, with 1% or 10% options. Mounting is simple with pre-drilled holes for surface installation or aircraft cable suspension. With 60,000-hour LEDs at 80 CRI, ETL/CSA certification for damp locations, and made-in-USA quality, the ALX3-DR is a reliable lighting solution for various applications.

Cross Section

ALX3-DR-Cross-section
ALX3 - DR

Features

  • Slim Clean Architectural Styling; No Visible Hardware
  • Perforated Aluminum With Diffuser or White Acrylic
  • Surface or Pendant Mount
  • 1 3/8″ Wide Extruded Aluminum Housing
  • Satin Anodized or White Paint Standard
  • Flat Rounded Frosted Acrylic Lens to Protect LEDS
  • Two Reflector Choices
  • Milled Architectural End-caps
  • Three LED Lumen Output Choices and Up to 1100 Lumens / Foot
  • Four LED Colors Choices
  • Integral Drivers, 0-10V Dimming Standard

Applications

  • Civic spaces
  • Educational Facilities
  • Healthcare Environments
  • Corporate Offices
  • Transit Hubs
  • Retail Stores
  • Hospitality
  • Residential

Download Resources

CUT SHEET
PHOTOMETRICS

Housing Finishes

W-White
W
White
S-Satin-1
S
Satin
A-Anti-Microbial
A
Anti Microbial
RGBW-COLOR-TUNING
C
Custom

NOTE:
The actual color of the product may vary from what is seen on electronic devices.
We cannot guarantee that the color you see on your screen accurately reflects the true color of the product.

LED Boards

27K-2700K
27K
2700K
30K-3000K
30K
3000K
35K-3500K
35K
3500K
40K-4000K
40K
4000K

LED DRIVERS

DESCRIPTION

Integral
Integral, Universal Voltage, 0-10V Dimming Standard, 1% or 10% Dimming

Mounting Options

36-Suspension-kit
SK36
36" Cable Kit
48-Suspension-Kit
SK48
48" Cable Kit
72-Suspension-kit
SK72
72" Cable Kit
ceiling mount1
SM
Surface Mount
Cove 5 Mounting options6
JBP
J-Box Plate

Shade Options

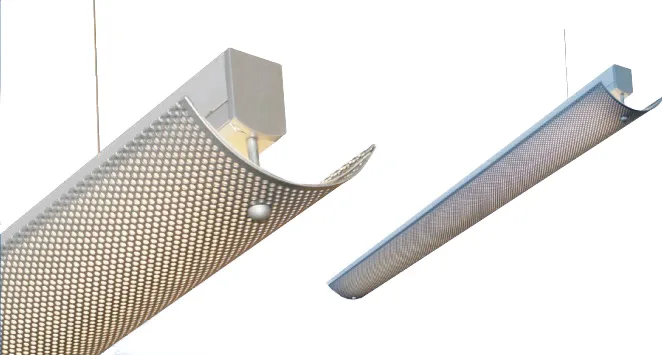

AXL3 PARDWARD 2
PARD
Perforated Aluminum W/ Diffuser

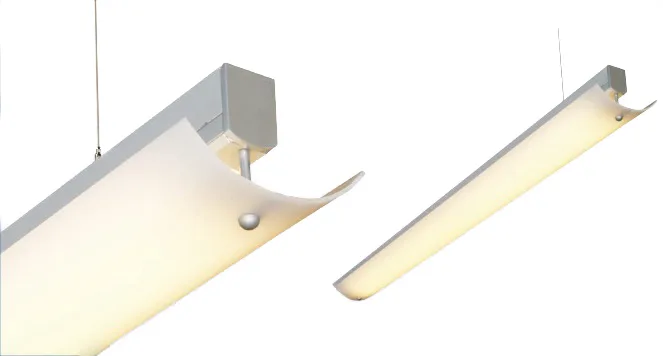

AXL3 PARDWARD 1
WAR
White Acrylic Reflector
